Do you need to break the current loop to take measurements?

No, you measure 4 to 20 mA signals directly without breaking the loop or shutting down the system.

What is the measurement accuracy of the Fluke 771?

The clamp meter provides a 0.2 % accuracy with a resolution and sensitivity of 0.01 mA.

Can you take measurements in tight spots?

Yes, the detachable clamp with extension cable allows easy measurement access in cramped control panels.

What measurement ranges does the device support?

In addition to standard 4 to 20 mA loops, it measures 10 to 50 mA signals in older systems via the 99.9 mA range.

What is included in the package?

The Fluke 771 milliamp process clamp meter comes with a soft carrying case and a user manual.

FLUKE 771 mA process current clamp - 2646347

Name: FLUKE 771 mA process current clamp - 2646347
Brand: FLUKE
SKU: 37990118
Price: 1084.44 EUR
Availability: PreOrder

Supplier number: FLUKE 2646347 | EAN 0095969349697

Recommended Retail Price €1,210.23

1,084.44 tax incl.

€896.23 excl. VAT (incl. all environmental contributions)

On order: delivered from 16/10/2026

Delivery by DHL

✆ Talk to a specialist

How does it work?

Purchase Fluke products during the promotion period.
Spend more than €100 excl. VAT? You will earn points based on the value of your purchase: €1 = 1 point.
Redeem your points for a free gift or save them for a higher-value gift.
Register your purchase via the Fluke registration page.
Fluke promotions are recognisable by the promotion label on the product page. Click the label to discover all available Fluke promotions.

Choose your free gift

The more you spend, the greater the reward. See below which free Fluke instruments you can choose based on the number of points you have earned.

Fluke Promotion 2026 - Receive free Fluke instruments

Measure current loops without downtime

Practical benefits

Measure without breaking the loop: You measure 4-20 mA signals directly without interrupting the control loop, saving time and preventing costly system shutdowns during maintenance.
Detachable clamp for tight spaces: The removable clamp with an extension cable lets you easily reach wires in crowded panels and view the display comfortably.
Built-in spotlight for dark enclosures: The integrated LED light illuminates hard-to-see conductors in dark control cabinets for quick and accurate inspections.

In a nutshell

The right choise for

With the Fluke 771 milliamp process clamp meter, you measure 4-20 mA control signals directly on the wire without breaking the current loop. This allows you to troubleshoot plc and dcs analog input and output modules quickly while avoiding costly system downtime. The compact, detachable clamp with an extension cable lets you reach tight conductors inside crowded control panels, while the built-in spotlight illuminates dark enclosures for safe operation. Offering a 0.2 % accuracy and 0.01 mA resolution, it delivers precise diagnostic results on sensitive instrumentation. The Fluke 771 comes complete with a soft carrying case and a user manual, making it ready for every maintenance job.

Product information FAQ

€1,084.44

tax incl.

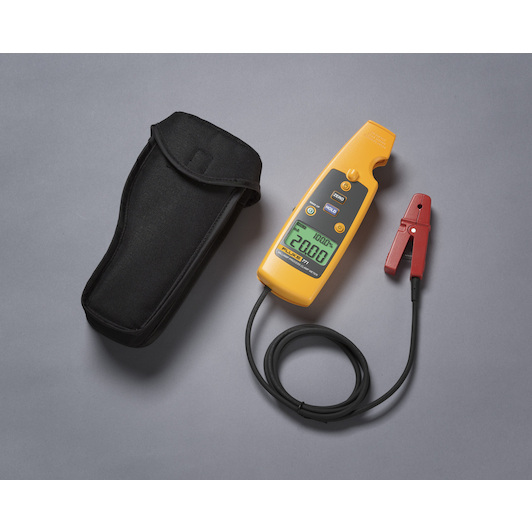

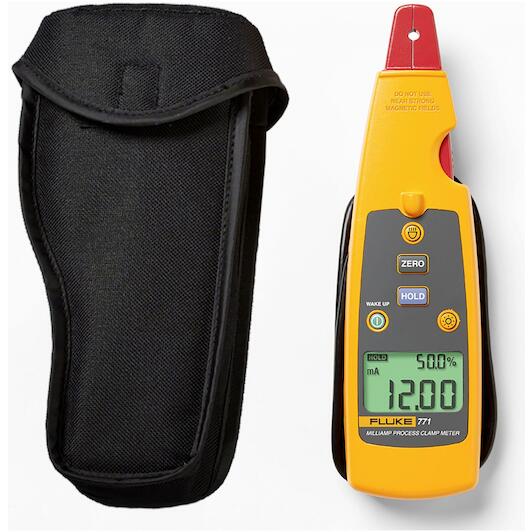

Scope of delivery

Carrying case
User manual

Key features:

In this class the highest accuracy of 0.2%
Resolution and sensitivity of 0.01 mA
Measurement of signals from 4 to 20 mA 'without interrupting the loop'
Measurement of mA signals for PLCs and analogue I/O signals of control systems.

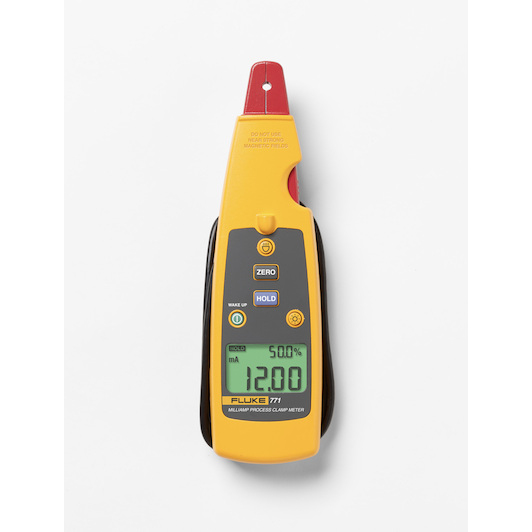

Illuminated dual display showing both mA measurement values and percentage of the range from 4 to 20 mA
Spot light illuminates wires that are poorly visible when measuring in dark enclosures
Detachable current clamp with extension cable for measurements in narrow openings
Measurement of signals from 10 to 50 mA in older control systems with a range of 99.9 mA
Automatically change the output signal for remote testing from 4 to 20 mA
Power saving options: automatic instrument shutdown and backlight shutdown after certain time to extend battery life
Hold function records and displays changing measured values

Brand FLUKE
37990118
EAN 0095969349697
Supplier number FLUKE 2646347

Frequently asked questions about this product

Answered by specialists

Do you need to break the current loop to take measurements?: No, you measure 4 to 20 mA signals directly without breaking the loop or shutting down the system.
What is the measurement accuracy of the Fluke 771?: The clamp meter provides a 0.2 % accuracy with a resolution and sensitivity of 0.01 mA.
Can you take measurements in tight spots?: Yes, the detachable clamp with extension cable allows easy measurement access in cramped control panels.
What measurement ranges does the device support?: In addition to standard 4 to 20 mA loops, it measures 10 to 50 mA signals in older systems via the 99.9 mA range.
What is included in the package?: The Fluke 771 milliamp process clamp meter comes with a soft carrying case and a user manual.
