What is the maximum range of the Bosch GRL 600 CHV rotary laser?

The rotary laser has a maximum range of 600 meters in diameter with a receiver. Without a receiver, the range is 60 meters in diameter.

How accurate is the Bosch GRL 600 CHV rotary laser?

The accuracy of the rotary laser is ± 1.5 mm at 30 meters horizontally and ± 3.0 mm at 30 meters vertically.

Is the Bosch GRL 600 CHV rotary laser dust and water resistant?

Yes, the rotary laser has an IP68 rating, meaning it is highly resistant to dust and water, including the battery compartment.

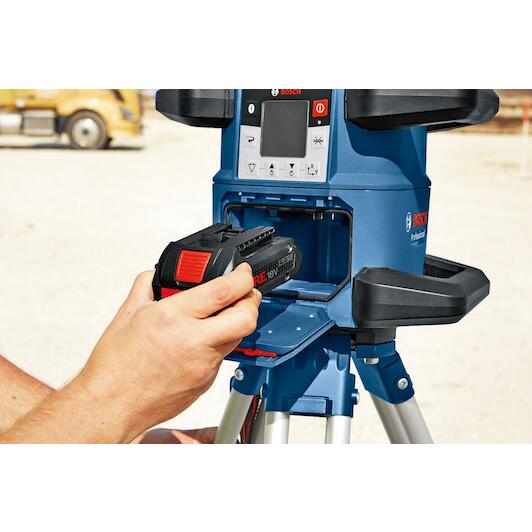

What batteries are compatible with the Bosch GRL 600 CHV rotary laser?

The rotary laser is compatible with Bosch 18V Li-ion batteries and can also be used with 4 D-cell alkaline batteries via the included adapter.

What is included in the scope of delivery for the Bosch GRL 600 CHV rotary laser set?

The set includes the GRL 600 CHV rotary laser, an LR 60 laser receiver, an RC 6 remote control, a ProCORE18V 4.0 Ah battery, a GAL 18V-40 quick charger, a BT 170 tripod, and a GR 240 measuring rod.

BOSCH GRL 600 CHV rotation laser red with GR 240 measuring rod and BT 170 HD tripod in case (1x 4.0Ah battery + charger) - 06159940P5

Name: BOSCH GRL 600 CHV rotation laser red with GR 240 measuring rod and BT 170 HD tripod in case (1x 4.0Ah battery + charger) - 06159940P5
Brand: BOSCH
SKU: 03059305
Price: 2316.71 EUR
Availability: PreOrder

Supplier number: BOSCH 06159940P5 | EAN 4059952557878

Recommended Retail Price €3,073.74

2,316.71 tax incl.

€1,914.64 excl. VAT (incl. all environmental contributions)

On order: delivered from 12/10/2026

set

✆ Talk to a specialist

How does it work?

Purchase a participating Bosch Professional MT Li-Ion measuring tool during the promotion period and receive the matching battery free of charge.
Upload your proof of purchase via the Bosch PRO360 app before 31 January 2027 to claim your free battery.
The promotion is valid from 01.09.2026 to 31.12.2026.
Bosch PRODEALS are recognisable by the promotion label on the product page. Click the label to view all participating items.

Bosch PRODEALS 2026 - Purchase a measuring tool and receive a free battery!

Accurate leveling for every job

Practical benefits

Extremely robust and durable: The Bosch GRL 600 CHV is designed for harsh conditions with IP68 protection against dust and water, including the battery compartment.
Large working range: With a working range of up to 600 meters in diameter with receiver, this rotary laser is suitable for large projects, both indoors and outdoors.

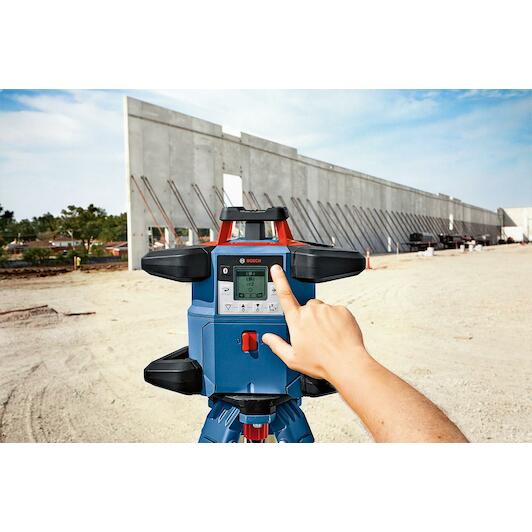

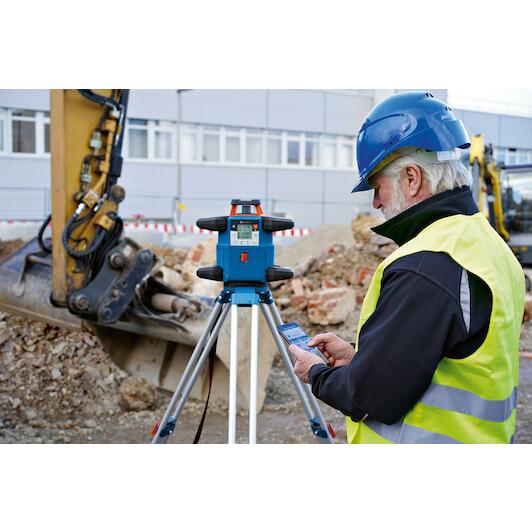

Easy operation and calibration: You operate the rotary laser intuitively via the screen or the Levelling Remote app, which also allows for quick and precise calibration.

In a nutshell

The right choise for

The Bosch grl 600 chv rotary laser is your reliable partner for precise leveling on any job site. With an impressive range of 600 meters in diameter with a receiver and an accuracy of 0.05 mm/m, you tackle large projects effortlessly. The IP68 protection makes this laser extremely robust against dust and water, including the battery compartment. You operate the laser easily via the screen or the Levelling Remote app, which also allows for quick calibration. Delivered complete with a gr 240 measuring rod and bt 170 hd construction tripod, plus a 4.0Ah battery and charger, you are immediately ready for any job.

Product information Accessories FAQ

€2,316.71

tax incl.

Key features according to our expert

Laser type: Rotating laser
Weight: 3,8 kg
Max. range: 60 m
With tripod: Yes
Tripod thread: 5/8"
Projection (laser beams): circle horizontal or vertical
Self-levelling range: 5,0000 °
Number of points: 1
Type of system case: Not applicable
Laser class: Class 2
Max. range with receiver: 600 m
Supplied in: Case
Accuracy: 0,05 mm/m
Colour (laser beams): Red
Protection class IP: IP68

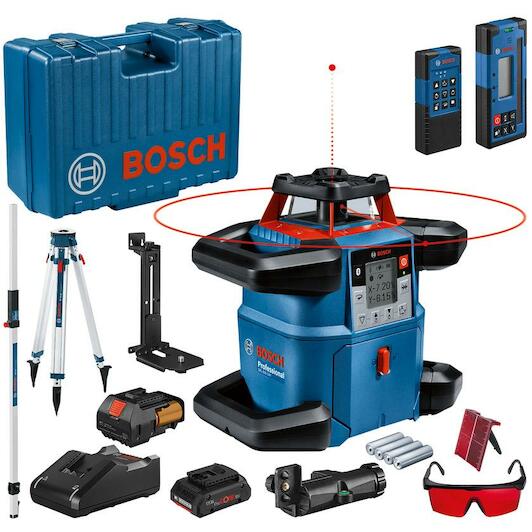

Scope of delivery

LR 60 laser receiver, RB 60 receiver holder, RC 6 remote control, WM 6 wall bracket, 1x ProCORE18V 4.0 Ah, GAL 18V-40 quick charger, BA 1 battery adapter, 4x battery 1.5V LR2 (D), 4x battery 1.5V LR6 (AA), goggles, laser target plate, tripod BT 170, GR 240 measuring profile

Product description

Rotation laser GRL 600 CHV set (LR 60 laser receiver, RB 60 receiver holder, RC 6 remote control, WM 6 wall mount, 1x ProCORE18V 4.0 Ah, GAL 18V-40 quick charger, BA 1 battery adapter, 4x battery 1.5V LR2 (D), 4x battery 1.5V LR6 (AA), glasses, laser target plate, tripod BT 170, GR 240 measurement profile)
Robustness and maximum protection against dust and water
Quick and easy set-up on screen, connection to receiver and app
High accuracy and long battery life

All Features

Laser type: Rotating laser
Weight: 3,8 kg
Max. range: 60 m
With tripod: Yes
Tripod thread: 5/8"
Projection (laser beams): circle horizontal or vertical
Self-levelling range: 5,0000 °
Number of points: 1
Type of system case: Not applicable
Laser class: Class 2
Max. range with receiver: 600 m
Supplied in: Case
Accuracy: 0,05 mm/m
Colour (laser beams): Red
Protection class ip: IP68
Compatible laser receivers: LR 60
Operating range without receiver (diameter): 60 m
Laser diode: 630 - 650 nm
Horizontal levelling accuracy (plus usage-dependent deviation)+-: 1.5 mm
Electric power supply 4xd batteries: 1,5 V
Operating range with receiver (diameter): 600 m
Operating time, max.: 60/70 h
Electric power supply li-ion battery: 18 V
Dust and splash water protection: IP 68
Battery voltage: 18 V
Rotation speed: 150/300/600 min-1
Projection line: 360 °

Brand BOSCH
03059305
EAN 4059952557878
Supplier number BOSCH 06159940P5
Warranty Up to 5 years warranty on Bosch Professional and up to 3 years on Bosch DIY after successful registration!
