BAHCO 232-SD stepped drill bit for sheet metal 6-37 mm

BAHCO
Supplier number: BAHCO 232-SD | EAN 7314150214839
Recommended Retail Price €297.39
181.40 tax incl.
€149.92 excl. VAT (incl. all environmental contributions)
On order: delivered from 09/10/2026

✆ Talk to a specialist


Product information
€181.40
tax incl.

Product information

Key features according to our expert

  • Smallest diameter: 6 mm
  • Largest diameter: 37 mm
  • Shank size: 10 mm

Product description:

  • For making holes in thin metal sheets
  • Titanium-nitride coated step drill with a surface hardness that makes the tool last 4 to 5 times longer than ordinary step drill bits. That same surface reduces friction, resulting in a tool that runs cooler and, in effect, self-lubricates while running dry
  • Drills holes in 12 steps from 6 to 37 mm
  • Shank 3/8" (10 mm)

All Features

Smallest diameter
6 mm
Largest diameter
37 mm
Shank size
10 mm

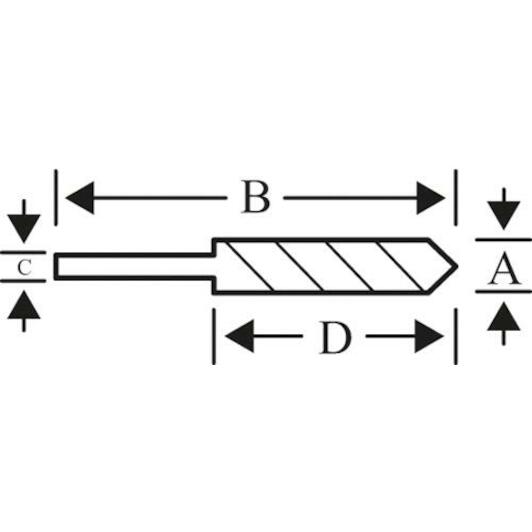

Shank diameter mm (c)
10 mm
Usable length mm (d)
75 mm
Drill hole sizes mm (a)
6-9-12.5-15.2-18.6-20.4-22.5-26-28.3-30.5-34-37 mm
Total length mm (b)
100 mm
Width stepdrill mm
6-9-12.5-15.2-18.6-20.4-22.5-26-28.3-30.5-34-37 mm
Weight oz oz
10,6 oz
Weight g
300 g
Shank stepdrill mm
10 mm
