Which machines are compatible with this Spit drill bit?

This hammer drill bit has an SDS-Max shank and fits all rotary hammers with an SDS-Max chuck.

What is the maximum working length of this drill bit?

The working cutting length is 800 mm, with an overall drill length of 920 mm.

What hole diameter does this drill bit produce?

This drill bit has a drilling diameter of 22 mm.

How many cutting edges does the drill head have?

The drill features a carbide tip with 3 cutting edges for fast and efficient drilling in concrete.

SPIT 225111 R-FORCE 3+ SDS-Max concrete drill bit 22x920/800 mm

Name: SPIT 225111 R-FORCE 3+ SDS-Max concrete drill bit 22x920/800 mm
Brand: SPIT
SKU: 02366286
Price: 159.8 EUR
Availability: InStock

Supplier number: SPIT 225111 | EAN 3439512251117

Recommended Retail Price €247.72

159.80 tax incl.

€132.07 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Delivery by DHL

✆ Talk to a specialist

Deep and reliable drilling in tough concrete

Practical benefits

Spit SDS-Max power: With this Spit hammer drill bit, you drill smoothly through tough concrete using the heavy-duty SDS-Max shank.
Fast cutting three-cutter head: The carbide tip with three cutting edges delivers rapid dust evacuation and prevents snagging.
Extended reach for deep holes: A total length of 920 mm and working length of 800 mm allows you to complete deep penetrations easily.

In a nutshell

The right choise for

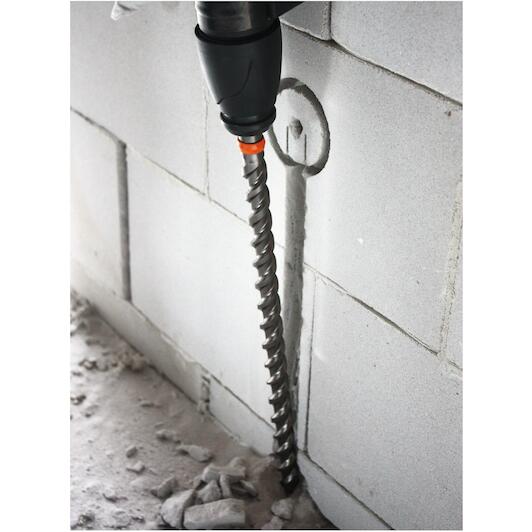

With the Spit r-force 3+ SDS-Max concrete drill bit, you drill deep and accurate holes through tough reinforced concrete and heavy masonry with ease. Thanks to a working length of 800 mm and a total length of 920 mm, you can easily complete deep penetrations through thick walls and floors for cables and pipes. The heavy-duty carbide tip with three cutting edges ensures fast drilling progress, prevents jamming in hard aggregate, and provides efficient dust removal. Paired with your SDS-Max rotary hammer, it delivers maximum torque transfer and total control on demanding jobs.

Product information FAQ

€159.80

In stock - tax incl.

Key features according to our expert

Diameter: 22 mm
Drill bit type: Hammer drill bit
Overall length: 920 mm
Shank type: SDS-max
Material (drill bit): Carbide tip
Number of cutting edges: 3 ea
Cutting length: 800 mm

Product description

SDS Max concrete drill bit three-cutter
Large diameter capacity
Head and spiral with wide opening for maximum dust and swarf removal
Centre cut and two side cutters for maximum speed
Double centring tip for improved accuracy
Wear indicator on head and spiral

Applications

Drilling SDS MAX

All Features

Diameter: 22 mm
Drill bit type: Hammer drill bit
Overall length: 920 mm
Shank type: SDS-max
Material (drill bit): Carbide tip
Number of cutting edges: 3 ea
Cutting length: 800 mm
Useful length: 800.0 mm
Base material: Non-cracked concrete, Solid brick, Sand-lime brick, Stone
Connection: SDS MAX
Health and safety: Eye protection, Gloves, Hearing protection

Brand SPIT
02366286
EAN 3439512251117
Supplier number SPIT 225111

Frequently asked questions about this product

Answered by specialists

Which machines are compatible with this Spit drill bit?: This hammer drill bit has an SDS-Max shank and fits all rotary hammers with an SDS-Max chuck.
What is the maximum working length of this drill bit?: The working cutting length is 800 mm, with an overall drill length of 920 mm.
What hole diameter does this drill bit produce?: This drill bit has a drilling diameter of 22 mm.
How many cutting edges does the drill head have?: The drill features a carbide tip with 3 cutting edges for fast and efficient drilling in concrete.
