What drill bit diameter is required for this segment anchor?

You need a drill bit with a diameter of 10 mm.

What is the maximum fixture thickness you can fasten?

The effective length is 50 mm, allowing you to secure fixtures up to 50 mm thick.

What base material is the Spit FIX 3 segment anchor designed for?

It is designed for through-fixing heavy loads in non-cracked concrete.

Are the nut and washer included?

Yes, the nut and washer come pre-mounted on the anchor.

What wrench size is required for tightening?

You need a 17 mm wrench or socket to tighten this M10 anchor.

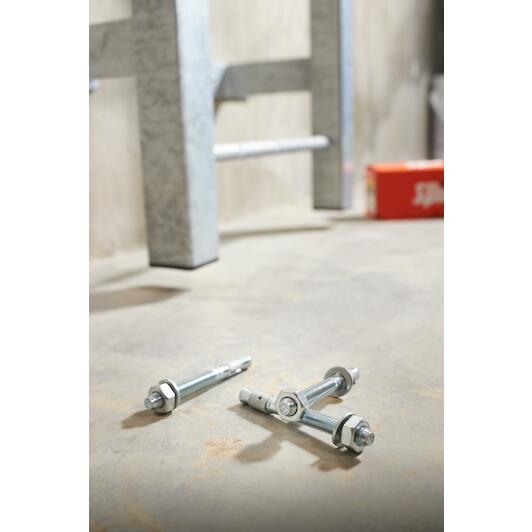

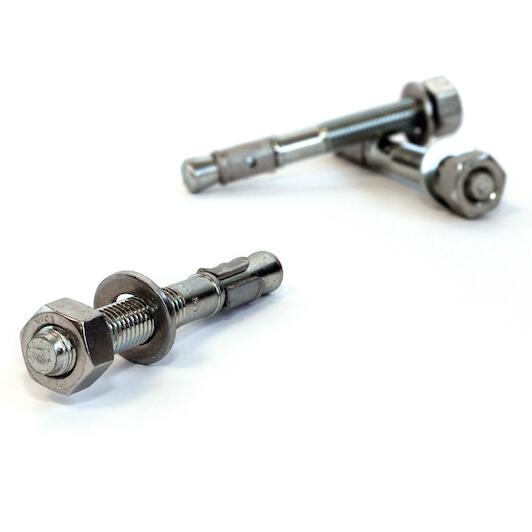

SPIT 057464 FIX 3 segment anchor M10X110/50 zinc-plated (incl. nut and washer pre-mounted)

Name: SPIT 057464 FIX 3 segment anchor M10X110/50 zinc-plated (incl. nut and washer pre-mounted)
Brand: SPIT
SKU: 02385067
Price: 1.29 EUR
Availability: InStock

Supplier number: SPIT 057464 | EAN 3439510574645

1.29 tax incl.

€1.07 excl. VAT (incl. all environmental contributions)

On stock - immediately available

The minimum purchase order quantity for the product is 25.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Alternative to this product

FISCHER 40855 rapid-action anchor FBN II...

1.14

€0.94 excl. VAT

On stock, immediately available.

Heavy duty anchoring in concrete

Practical benefits

High load capacity performance: You secure heavy fixtures firmly in non-cracked concrete thanks to the optimized expansion clip design.
Ready for immediate installation: The pre-assembled nut and washer save you valuable time during high-volume fastening tasks.
Dependable zinc plated protection: Made from durable zinc-plated steel, it gives you reliable resistance for everyday indoor applications.

In a nutshell

The right choise for

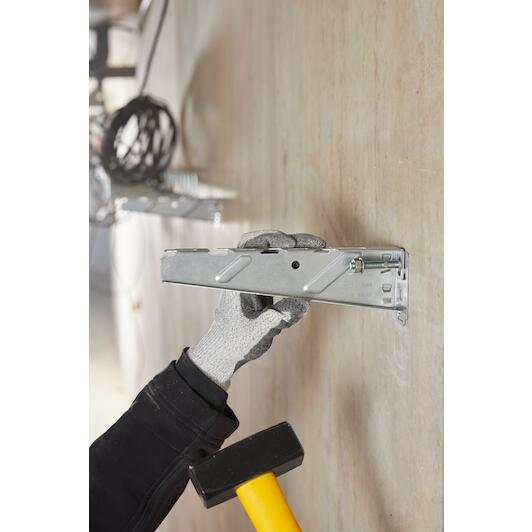

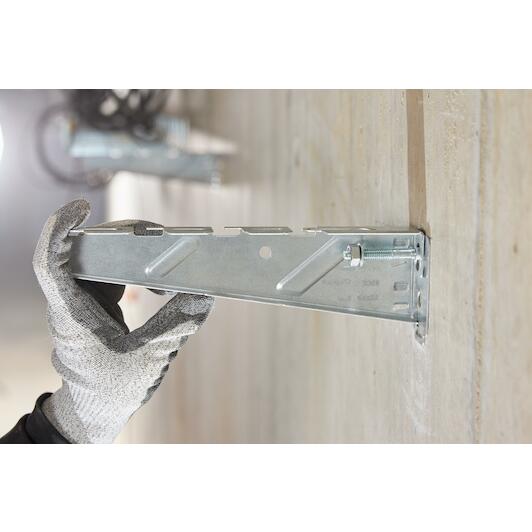

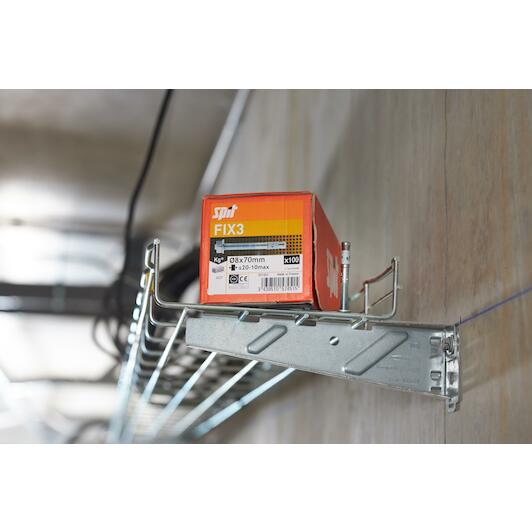

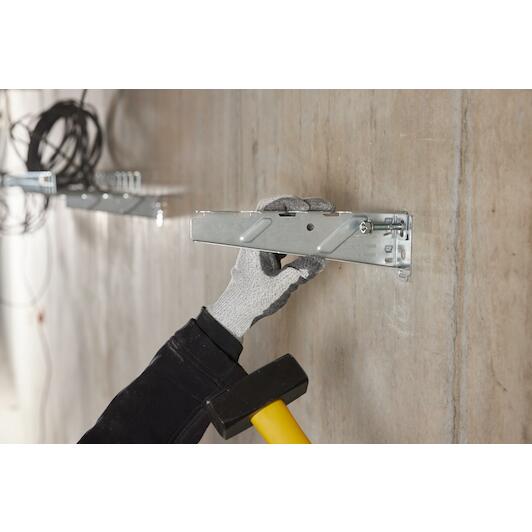

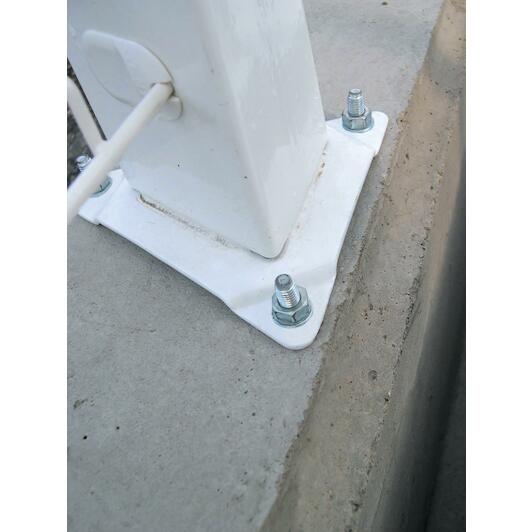

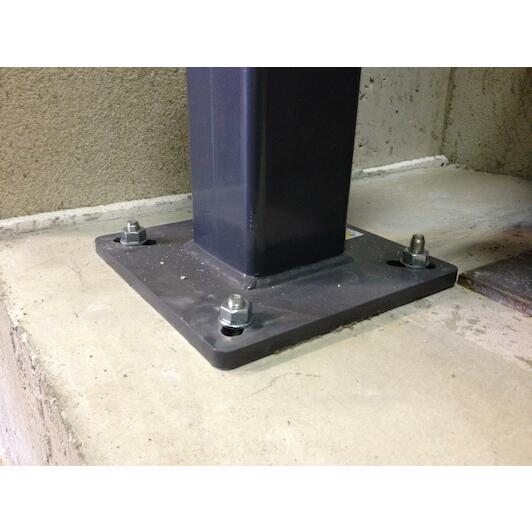

With the Spit fix 3 segment anchor M10X110/50, you achieve secure and reliable heavy-duty anchoring in non-cracked concrete. Thanks to the 50 mm fixture thickness, you can easily secure heavy steel baseplates, racking, cable trays, or timber structures using efficient through-fixing. Simply drill with a 10 mm drill bit and tighten using a 17 mm wrench. Because the hex nut and washer come pre-mounted, you save valuable time during high-volume installations. The zinc-plated steel construction provides dependable corrosion resistance for all indoor applications, ensuring your structural installations stay firmly in place.

Product information FAQ

€1.29

In stock - tax incl.

Key features according to our expert

Drilling diameter: 10 mm
Effective length: 50 mm
Overall length: 110 mm
Material (bolt): Steel
Surface treatment (bolt): Zinc plated
Thread designation: M10

Product description

Pierce fitting for heavy loads in non-cracked concrete
ETA approved quality anchor for standard applications
ETA option 7 for use in non-cracked concrete
Achieves the highest loads for an ETA option 7 approved anchor
Fast expansion thanks to special segment design
Extra large washer for a wide range of applications
Long thread for flexible fixing thickness

Applications

Steel structures
Stairs
Pull and pressure braces
Purlin shoe
Stadium seating
HVAC

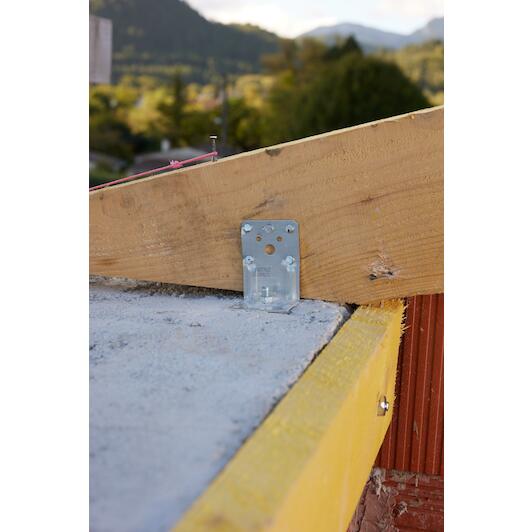

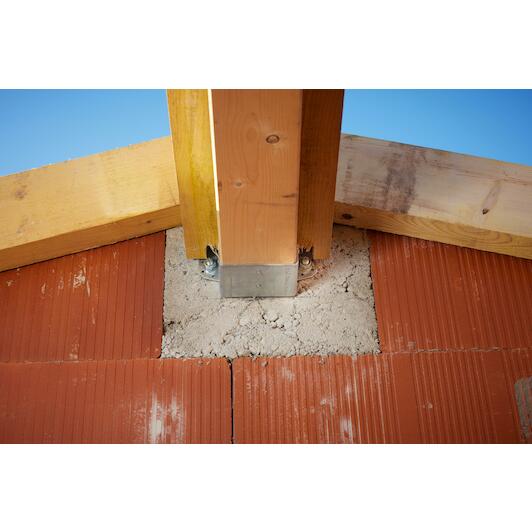

Wooden structures
Brackets
Metal brackets

Documents

⤓ Declaration of Conformity PDF

All Features

Drilling diameter: 10 mm
Effective length: 50 mm
Overall length: 110 mm
Material (bolt): Steel
Surface treatment (bolt): Zinc plated
Thread designation: M10
Anchor diameter: 10.0 mm
Min. thickness of base material: 100 mm
Tightening torque: 30 N-m
Maximum trapping: 50 mm
Head type: Loose nut head
Min. anchor distance: 60 mm
Base material colour: GREY
Minimum clamping thickness: 40 mm
Product material: Carbon steel
Min. edge distance (mm): 65 mm
Treatment: Galvanised
Minimum drilling depth: 70 mm
Maximum installation depth: 50 mm
Drill diameter: 10.0 mm
Minimum placement depth: 40.0 mm
Base material: Non-cracked concrete
Throughput diameter: 12 mm
Anchor length: 110 mm
Surface treatment: Galvanised
Wire diameter: M10
Key size: 17.0 mm
Anchor screw material: Steel

Brand SPIT
02385067
EAN 3439510574645
Supplier number SPIT 057464

Frequently asked questions about this product

Answered by specialists

What drill bit diameter is required for this segment anchor?: You need a drill bit with a diameter of 10 mm.
What is the maximum fixture thickness you can fasten?: The effective length is 50 mm, allowing you to secure fixtures up to 50 mm thick.
What base material is the Spit FIX 3 segment anchor designed for?: It is designed for through-fixing heavy loads in non-cracked concrete.
Are the nut and washer included?: Yes, the nut and washer come pre-mounted on the anchor.
What wrench size is required for tightening?: You need a 17 mm wrench or socket to tighten this M10 anchor.
