What shaft size is the SKF YET 210 bearing suitable for?

This insert bearing features a cylindrical bore with an inside diameter of 50 mm, designed for a 50 mm metric shaft.

How is the bearing secured to the shaft?

You secure the bearing quickly and reliably onto the shaft using its eccentric locking collar.

What rotation direction is this bearing designed for?

The YET 210 with eccentric collar is specifically designed for applications with a constant direction of rotation in one direction.

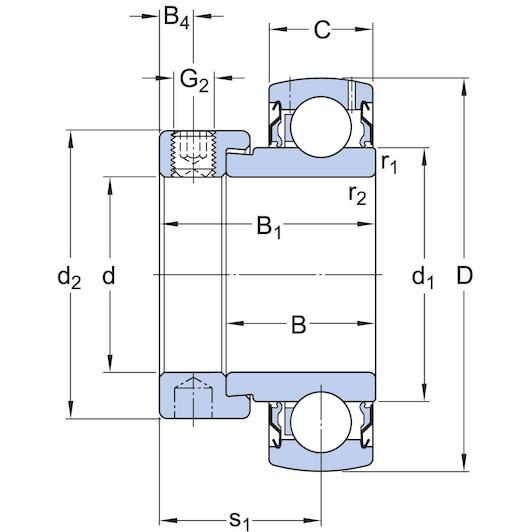

What are the main dimensions of this bearing?

The bearing has an inside diameter of 50 mm, an outside diameter of 90 mm, and an inner ring width of 30,2 mm.

What materials is this bearing made of?

The bearing is made of durable bearing steel and is equipped with a plastic cage.

SKF YET 210 Y insert bearing cylindrical with eccentric ring for metric shaft, 50 x 90 mm

Supplier number: SKF YET 210 | EAN 7316577035233

Recommended Retail Price €148.21

73.20 tax incl.

€60.50 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable shaft mounting by Skf

Practical benefits

Fast and secure locking: The eccentric locking collar allows you to securely mount and clamp the bearing onto a 50 mm metric shaft.
Smooth and quiet operation: The durable steel build with non-metallic cage reduces friction and vibration levels during constant one-directional rotation.
Reliable protection against contaminants: Built-in contact seals protect internal components from dust and debris, helping you maximize overall service life.

In a nutshell

The right choise for

With the Skf yet 210 insert bearing, you quickly and securely mount a dependable bearing onto a 50 mm metric shaft. Thanks to the practical eccentric locking collar, you clamp the bearing firmly in place without needing special press tools, making it ideal for drive shafts in agricultural machinery, conveyor systems, and industrial constructions. The durable steel design with a plastic cage ensures smooth and quiet operation in applications with a constant direction of rotation. Featuring a 90 mm outside diameter and a narrow inner ring extended on one side with a 30,2 mm width, it integrates smoothly into existing housing units. The built-in seals reliably keep out dust and dirt to extend component life.

Product information FAQ

€73.20

In stock - tax incl.

Key features according to our expert

Inner diameter: 50 mm
Width: 30,2 mm
Material (bearing): Steel
Material (cage): Plastic
High temperature: No
Bore type: Cylindrical
Inner ring extension: On one side
Outer diameter: 90 mm

Product description

Insert bearings are based on sealed deep groove ball bearings. This variant is intended for use in applications where the direction of rotation is constant. It has a narrow inner ring extended on one side, with an eccentric locking collar, enabling quick and easy mounting onto the shaft.

Designed for rotation in one direction
Quick and easy to mount onto the shaft
Long service life
Reduce noise and vibration levels

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 50 mm
Width: 30,2 mm
Material (bearing): Steel
Material (cage): Plastic
High temperature: No
Bore type: Cylindrical
Inner ring extension: On one side
Outer diameter: 90 mm
Width, outer ring: 22
Basic static load rating: 23.2
Relubrication feature: With
Lubricant: Grease
Rubber seating ring: Without
Sealing type: Contact, standard
Cage: Non-metallic
Material, bearing: Bearing steel
Sealing: Seal on both sides
Rolling elements: Balls
Application: For material handling applications; For air handling applications
Retaining feature, inner ring: Eccentric collar
Limiting speed: 4000
Outer ring type: Spherical
Width, total: 43.7
Width, inner ring: 30.2
Shaft diameter: 50
Bore diameter: 50
Basic dynamic load rating: 35.1
Coating: Without
Outer diameter: 90
Note: Limiting speed with shaft tolerance h6

Brand SKF
01190052
EAN 7316577035233
Supplier number SKF YET 210

Frequently asked questions about this product

Answered by specialists

What shaft size is the SKF YET 210 bearing suitable for?: This insert bearing features a cylindrical bore with an inside diameter of 50 mm, designed for a 50 mm metric shaft.
How is the bearing secured to the shaft?: You secure the bearing quickly and reliably onto the shaft using its eccentric locking collar.
What rotation direction is this bearing designed for?: The YET 210 with eccentric collar is specifically designed for applications with a constant direction of rotation in one direction.
What are the main dimensions of this bearing?: The bearing has an inside diameter of 50 mm, an outside diameter of 90 mm, and an inner ring width of 30,2 mm.
What materials is this bearing made of?: The bearing is made of durable bearing steel and is equipped with a plastic cage.
