What shaft diameter is this insert bearing designed for?

This bearing has a 70 mm cylindrical bore and is designed for metric shafts with a 70 mm diameter.

How is the bearing locked onto the shaft?

It is secured onto the shaft using two set screws located on the inner ring, which is extended on both sides.

Is this bearing suitable for alternating directions of rotation?

Yes, the set screw locking mechanism makes it suitable for both constant and alternating rotation directions.

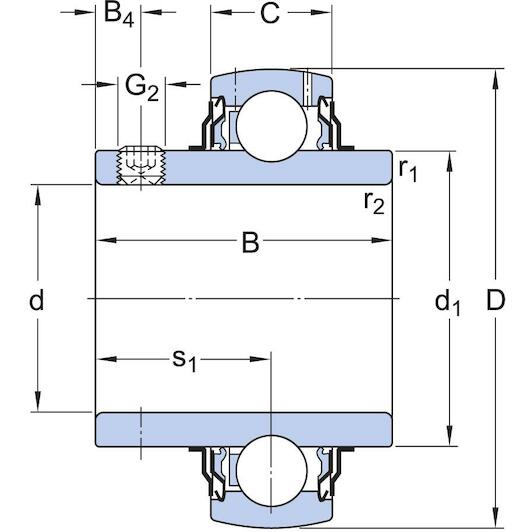

What are the outer dimensions of this SKF insert bearing?

The bearing features a spherical outside diameter of 125 mm and a total inner ring width of 69.9 mm.

Can the SKF YAR 214-2F bearing be relubricated?

Yes, this insert bearing is equipped with relubrication holes for maintenance through the housing.

SKF YAR 214-2F Y insert bearing cylindrical with set screw for metric shaft, 70 x 125 mm

Supplier number: SKF YAR 214-2F | EAN 7316570979091

Recommended Retail Price €358.44

177.40 tax incl.

€146.61 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 4 products in stock.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Dependable shaft mounting with Skf YAR 214-2F

Practical benefits

Quick and simple mounting: Tighten the set screws on the extended inner ring to lock the bearing securely onto 70 mm shafts.
Handles alternating rotation directions: Designed for constant and reversing rotations, this bearing ensures smooth running performance across diverse industrial machinery applications.
Effective seal against contamination: Integrated seals protect the internal rolling elements from dust and moisture, giving you extended service life with minimal maintenance.

In a nutshell

The right choise for

With the Skf yar 214-2F insert bearing, you achieve fast and reliable mounting on 70 mm metric shafts. Featuring an inner ring extended on both sides and convenient set screws, you lock the bearing securely in place without the need for press-fitting. This robust steel bearing is engineered for both constant and alternating rotation directions in bearing housings across conveyor systems, industrial processing machines, and agricultural equipment. Integrated seals protect internal components against dirt and moisture to minimise wear, while built-in relubrication holes allow for easy ongoing maintenance.

Product information FAQ

€177.40

In stock - tax incl.

Key features according to our expert

Inner diameter: 70 mm
Width: 69,9 mm
Material (bearing): Steel
Material (cage): Plastic
High temperature: No
Bore type: Cylindrical
Inner ring extension: On both sides
Outer diameter: 125 mm

Product description

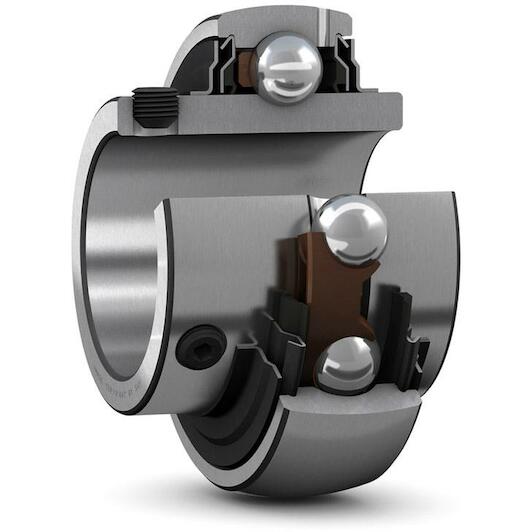

Insert bearings are based on sealed deep groove ball bearings. This variant is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on both sides and is locked onto the shaft by tightening two (set) screws on the inner ring, making it easy to mount.

Designed for a constant and alternating rotation
Quick and easy to mount onto the shaft
Reduce noise and vibration levels

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 70 mm
Width: 69,9 mm
Material (bearing): Steel
Material (cage): Plastic
High temperature: No
Bore type: Cylindrical
Inner ring extension: On both sides
Outer diameter: 125 mm
Width, outer ring: 28
Basic static load rating: 45
Relubrication feature: With
Lubricant: Grease
Rubber seating ring: Without
Sealing type: Contact, standard
Cage: Non-metallic
Material, bearing: Bearing steel
Sealing: Seal and flinger on both sides
Rolling elements: Balls
Application: For material handling applications
Retaining feature, inner ring: Set screws
Limiting speed: 2800
Outer ring type: Spherical
Width, total: 69.9
Width, inner ring: 69.9
Shaft diameter: 70
Bore diameter: 70
Basic dynamic load rating: 62.4
Coating: Without
Outer diameter: 125
Note: Limiting speed with shaft tolerance h6

Brand SKF
01190665
EAN 7316570979091
Supplier number SKF YAR 214-2F

Frequently asked questions about this product

Answered by specialists

What shaft diameter is this insert bearing designed for?: This bearing has a 70 mm cylindrical bore and is designed for metric shafts with a 70 mm diameter.
How is the bearing locked onto the shaft?: It is secured onto the shaft using two set screws located on the inner ring, which is extended on both sides.
Is this bearing suitable for alternating directions of rotation?: Yes, the set screw locking mechanism makes it suitable for both constant and alternating rotation directions.
What are the outer dimensions of this SKF insert bearing?: The bearing features a spherical outside diameter of 125 mm and a total inner ring width of 69.9 mm.
Can the SKF YAR 214-2F bearing be relubricated?: Yes, this insert bearing is equipped with relubrication holes for maintenance through the housing.
