What shaft size is this Y-bearing suitable for?

This bearing is suitable for a cylindrical metric shaft with a diameter of 40 mm.

What materials are used in this bearing?

The bearing is made of stainless steel with a plastic cage.

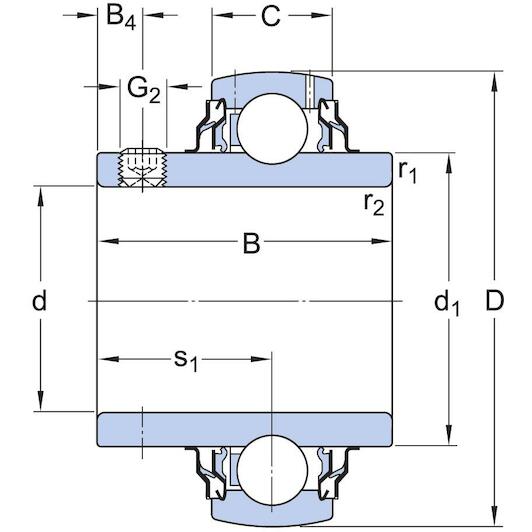

What are the main dimensions of this SKF bearing?

The bore diameter is 40 mm, the outside diameter is 80 mm, and the total width is 49.2 mm.

Is this Y-bearing suitable for alternating rotation directions?

Yes, this variant is designed for applications with both constant and alternating rotation directions.

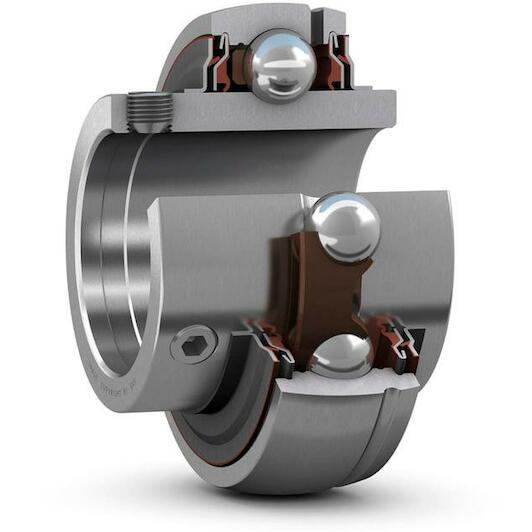

SKF YAR 208-2RF/HV Y insert bearing cylindrical with set screw for metric shaft, 40 x 80 mm

Supplier number: SKF YAR 208-2RF/HV | EAN 7316571055121

Recommended Retail Price €489.08

241.95 tax incl.

€199.96 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Secure shaft mounting with YAR 208-2RF/HV

Practical benefits

Quick and simple shaft installation: You mount the bearing effortlessly onto the shaft using the extended inner ring and secure set screws.
High resistance to corrosion: The stainless steel construction protects your equipment against moisture and ensures lasting durability in tough conditions.
Built for alternating rotations: You can depend on smooth operation across both constant and alternating rotation directions without slipping.

In a nutshell

The right choise for

With the Skf yar 208-2RF/HV Y-insert bearing, you achieve secure and dependable shaft mounting in demanding, wet environments. Made from corrosion-resistant stainless steel with a plastic cage, this bearing ensures long-lasting operation in food processing, chemical, and conveyor systems. Thanks to the inner ring extended on both sides and integrated set screws, you can mount it quickly and securely onto a cylindrical 40 mm metric shaft. Featuring an 80 mm outside diameter and a width of 49.2 mm, it operates smoothly across both constant and alternating directions of rotation.

Product information FAQ

€241.95

In stock - tax incl.

Key features according to our expert

Inner diameter: 40 mm
Width: 49,2 mm
Material (bearing): Stainless steel
Material (cage): Plastic
High temperature: No
Bore type: Cylindrical
Inner ring extension: On both sides
Outer diameter: 80 mm

Product description

Insert bearings are based on sealed deep groove ball bearings. This variant is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on both sides and is locked onto the shaft by tightening two (set) screws on the inner ring, making it easy to mount.

Designed for a constant and alternating rotation
Quick and easy to mount onto the shaft
Reduce noise and vibration levels

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 40 mm
Width: 49,2 mm
Material (bearing): Stainless steel
Material (cage): Plastic
High temperature: No
Bore type: Cylindrical
Inner ring extension: On both sides
Outer diameter: 80 mm
Width, outer ring: 21
Basic static load rating: 19
Relubrication feature: With
Lubricant: Grease
Rubber seating ring: Without
Sealing type: Contact, multiple
Cage: Non-metallic
Material, bearing: Stainless steel
Sealing: Seal and flinger on both sides
Rolling elements: Balls
Application: For food and beverage applications
Retaining feature, inner ring: Set screws
Limiting speed: 2800
Outer ring type: Spherical
Width, total: 49.2
Width, inner ring: 49.2
Shaft diameter: 40
Bore diameter: 40
Basic dynamic load rating: 24.7
Coating: Without
Outer diameter: 80
Note: Limiting speed with shaft tolerance h6

Brand SKF
01191144
EAN 7316571055121
Supplier number SKF YAR 208-2RF/HV

Frequently asked questions about this product

Answered by specialists

What shaft size is this Y-bearing suitable for?: This bearing is suitable for a cylindrical metric shaft with a diameter of 40 mm.
How is the bearing secured to the shaft?: You lock the bearing onto the shaft by tightening two set screws on the extended inner ring.
What materials are used in this bearing?: The bearing is made of stainless steel with a plastic cage.
What are the main dimensions of this SKF bearing?: The bore diameter is 40 mm, the outside diameter is 80 mm, and the total width is 49.2 mm.
Is this Y-bearing suitable for alternating rotation directions?: Yes, this variant is designed for applications with both constant and alternating rotation directions.
