Which shaft diameter is this Y-bearing insert designed for?

This bearing is designed for a metric shaft with a diameter of 20 mm.

How do you lock the bearing onto the shaft?

You secure the extended inner ring onto the shaft by tightening the integrated set screws.

Why choose the stainless steel version from SKF?

The stainless steel construction provides excellent corrosion resistance, ideal for humid environments.

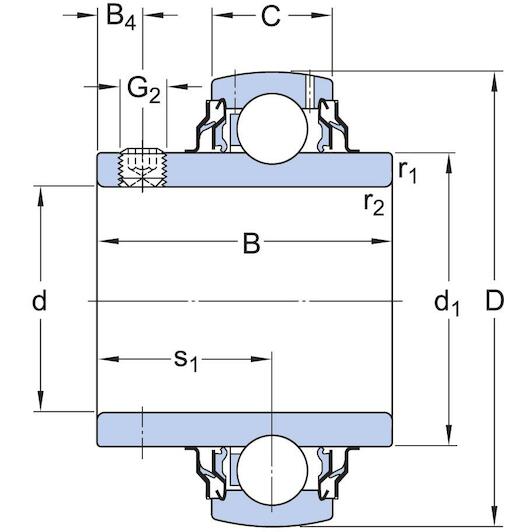

What are the main dimensions of this component?

The bearing has an inside diameter of 20 mm, an outside diameter of 47 mm, and a width of 31 mm.

Is this Y-bearing suitable for alternating rotation directions?

Yes, the set screw locking mechanism is suitable for both constant and alternating rotation directions.

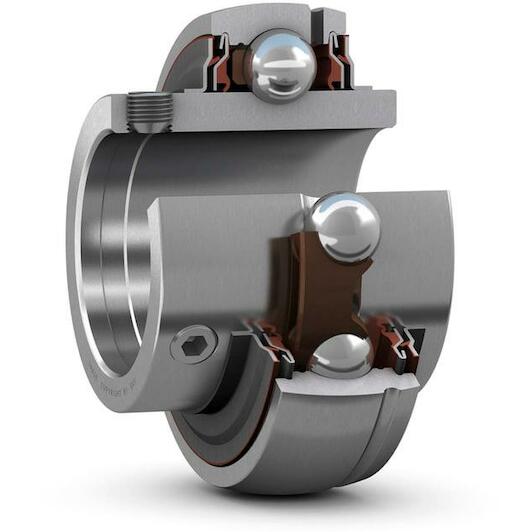

SKF YAR 204-2RF/HV Y insert bearing cylindrical with set screw for metric shaft, 20 x 47 mm

Supplier number: SKF YAR 204-2RF/HV | EAN 7316570214673

Recommended Retail Price €239.47

118.40 tax incl.

€97.85 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable shaft support in demanding environments

Practical benefits

Strong resistance to corrosion: With the stainless steel build of this Skf bearing, you maintain smooth operation even in damp or corrosive conditions.
Quick and secure mounting: The two set screws on the extended inner ring allow you to lock the bearing onto the shaft firmly and easily.
Reliable protection against contaminants: Effective contact seals keep the lubricant securely inside while blocking dirt and moisture from reaching the internal rolling elements.

In a nutshell

The right choise for

With the Skf yar 204-2RF/HV insert bearing, you secure reliable shaft support in damp and demanding operating conditions. Its stainless steel construction prevents corrosion and premature wear, ensuring lasting performance. The inner ring, extended on both sides, provides enhanced stability on a 20 mm metric shaft, while the integrated set screws allow fast and secure locking. Designed to handle both constant and alternating directions of rotation, this bearing features effective contact seals that retain lubricant while keeping dirt and moisture out, keeping your machinery running smoothly.

Product information FAQ

€118.40

In stock - tax incl.

Key features according to our expert

Inner diameter: 20 mm
Width: 31 mm
Material (bearing): Stainless steel
Material (cage): Plastic
High temperature: No
Bore type: Cylindrical
Inner ring extension: On both sides
Outer diameter: 47 mm

Product description

Insert bearings are based on sealed deep groove ball bearings. This variant is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on both sides and is locked onto the shaft by tightening two (set) screws on the inner ring, making it easy to mount.

Designed for a constant and alternating rotation
Quick and easy to mount onto the shaft
Reduce noise and vibration levels

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 20 mm
Width: 31 mm
Material (bearing): Stainless steel
Material (cage): Plastic
High temperature: No
Bore type: Cylindrical
Inner ring extension: On both sides
Outer diameter: 47 mm
Width, outer ring: 14
Basic static load rating: 6.55
Relubrication feature: With
Lubricant: Grease
Rubber seating ring: Without
Sealing type: Contact, multiple
Cage: Non-metallic
Material, bearing: Stainless steel
Sealing: Seal and flinger on both sides
Rolling elements: Balls
Application: For food and beverage applications
Retaining feature, inner ring: Set screws
Limiting speed: 5000
Outer ring type: Spherical
Width, total: 31
Width, inner ring: 31
Shaft diameter: 20
Bore diameter: 20
Basic dynamic load rating: 10.8
Coating: Without
Outer diameter: 47
Note: Limiting speed with shaft tolerance h6

Brand SKF
01191140
EAN 7316570214673
Supplier number SKF YAR 204-2RF/HV

Frequently asked questions about this product

Answered by specialists

Which shaft diameter is this Y-bearing insert designed for?: This bearing is designed for a metric shaft with a diameter of 20 mm.
How do you lock the bearing onto the shaft?: You secure the extended inner ring onto the shaft by tightening the integrated set screws.
Why choose the stainless steel version from SKF?: The stainless steel construction provides excellent corrosion resistance, ideal for humid environments.
What are the main dimensions of this component?: The bearing has an inside diameter of 20 mm, an outside diameter of 47 mm, and a width of 31 mm.
Is this Y-bearing suitable for alternating rotation directions?: Yes, the set screw locking mechanism is suitable for both constant and alternating rotation directions.
