SKF

SKF YAR 204-2LPW/SS Y insert bearing cylindrical with set screw for metric shaft, 20 x 47 mm

Recommended Retail Price €260.51
128.80 tax incl.
€106.45 excl. VAT (incl. all environmental contributions)
On order: delivered from 22/05/2026
each

  • Delivery by DHL

Product description

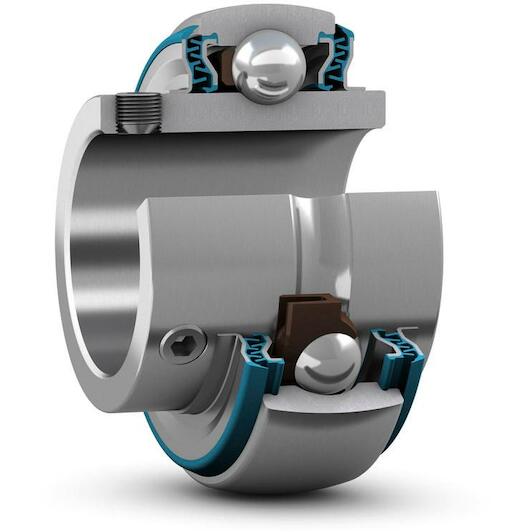

Insert bearings are based on sealed deep groove ball bearings. This variant is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on both sides and is locked onto the shaft by tightening two (set) screws on the inner ring, making it easy to mount.

  • Designed for a constant and alternating rotation
  • Quick and easy to mount onto the shaft
  • Reduce noise and vibration levels
Key features according to our expert
  • Inner diameter: 20 mm
  • Width: 31 mm
  • Material (bearing): Stainless steel
  • Material (cage): Plastic
  • High temperature: No
  • Bore type: Cylindrical
  • Inner ring extension: On both sides
  • Outer diameter: 47 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577848512
  • Supplier number: SKF YAR 204-2LPW/SS
Inner diameter
20 mm
Width
31 mm
Material (bearing)
Stainless steel
Material (cage)
Plastic
High temperature
No
Bore type
Cylindrical
Inner ring extension
On both sides
Outer diameter
47 mm
Width, outer ring
14
Basic static load rating
6.55
Relubrication feature
Without
Lubricant
Grease
Rubber seating ring
Without
Sealing type
Contact, gutter
Cage
Non-metallic
Material, bearing
Stainless steel
Sealing
Seal and flinger on both sides
Rolling elements
Balls
Application
For food and beverage applications
Retaining feature, inner ring
Set screws
Limiting speed
5000
Outer ring type
Spherical
Width, total
31
Width, inner ring
31
Shaft diameter
20
Bore diameter
20
Basic dynamic load rating
10.8
Coating
Without
Outside diameter
47
Note
Limiting speed with shaft tolerance h6
