What shaft size is this insert bearing designed for?

This bearing is suitable for a metric shaft with a diameter of 15 mm.

How is the bearing secured to the shaft?

You secure it to the shaft by tightening the two set screws on the extended inner ring.

What are the main dimensions of this SKF insert bearing?

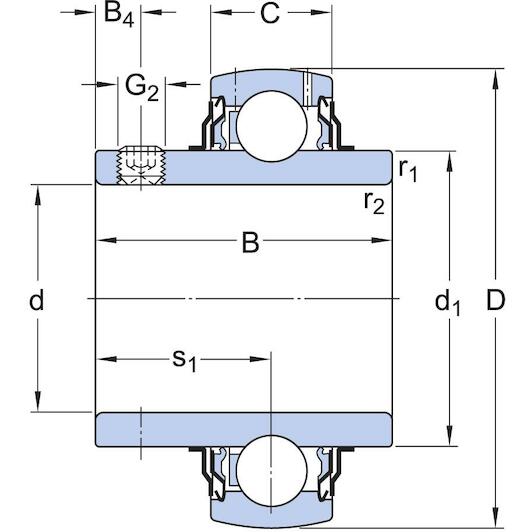

It features a 15 mm bore, an outer diameter of 40 mm, and a total width of 27.4 mm.

Can this bearing operate with alternating rotation directions?

Yes, it is designed for both constant and alternating directions of rotation.

Is this bearing rated for high-temperature environments?

No, this bearing is not specified for high-temperature use.

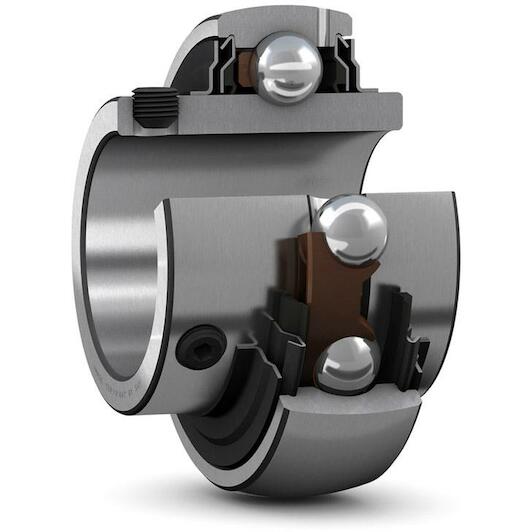

SKF YAR 203/15-2F Y insert bearing cylindrical with set screw for metric shaft, 15 x 40 mm

Supplier number: SKF YAR 203/15-2F | EAN 7316571125312

Recommended Retail Price €57.16

28.20 tax incl.

€23.31 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable shaft support for smooth machinery operation

Practical benefits

Quick and simple installation: You secure the Skf insert bearing effortlessly onto the shaft using two convenient set screws.
Flexible rotation direction support: You run constant or alternating rotation cycles smoothly without compromising mechanical stability.
Reduced noise and vibration: The engineered steel construction and effective seals ensure a quiet, balanced, and durable performance.

In a nutshell

The right choise for

With the Skf yar 203/15-2F Y-insert bearing, you achieve fast and secure mounting on a 15 mm shaft without the need for a complex press-fit. The inner ring, extended on both sides, provides extra stability and reduces tilting during operation. By tightening the two set screws, you lock the bearing firmly in place for drives running in constant or alternating rotation directions across conveyor belts, agricultural equipment, and production lines. Its sturdy steel build and built-in 2F seals ensure smooth, low-noise performance while keeping out dirt and debris.

Product information FAQ

€28.20

In stock - tax incl.

Key features according to our expert

Inner diameter: 15 mm
Width: 27,4 mm
Material (bearing): Steel
Material (cage): Plastic
High temperature: No
Bore type: Cylindrical
Inner ring extension: On both sides
Outer diameter: 40 mm

Product description

Insert bearings are based on sealed deep groove ball bearings. This variant is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on both sides and is locked onto the shaft by tightening two (set) screws on the inner ring, making it easy to mount.

Designed for a constant and alternating rotation
Quick and easy to mount onto the shaft
Reduce noise and vibration levels

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 15 mm
Width: 27,4 mm
Material (bearing): Steel
Material (cage): Plastic
High temperature: No
Bore type: Cylindrical
Inner ring extension: On both sides
Outer diameter: 40 mm
Width, outer ring: 12
Basic static load rating: 4.75
Relubrication feature: With
Lubricant: Grease
Rubber seating ring: Without
Sealing type: Contact, standard
Cage: Non-metallic
Material, bearing: Bearing steel
Sealing: Seal and flinger on both sides
Rolling elements: Balls
Application: For material handling applications
Retaining feature, inner ring: Set screws
Limiting speed: 9500
Outer ring type: Spherical
Width, total: 27.4
Width, inner ring: 27.4
Shaft diameter: 15
Bore diameter: 15
Basic dynamic load rating: 9.56
Coating: Without
Outer diameter: 40
Note: Limiting speed with shaft tolerance h6

Brand SKF
01191132
EAN 7316571125312
Supplier number SKF YAR 203/15-2F

Frequently asked questions about this product

Answered by specialists

What shaft size is this insert bearing designed for?: This bearing is suitable for a metric shaft with a diameter of 15 mm.
How is the bearing secured to the shaft?: You secure it to the shaft by tightening the two set screws on the extended inner ring.
What are the main dimensions of this SKF insert bearing?: It features a 15 mm bore, an outer diameter of 40 mm, and a total width of 27.4 mm.
Can this bearing operate with alternating rotation directions?: Yes, it is designed for both constant and alternating directions of rotation.
Is this bearing rated for high-temperature environments?: No, this bearing is not specified for high-temperature use.
