SKF

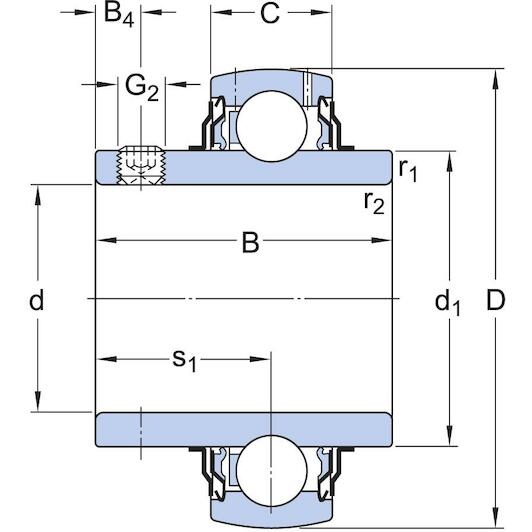

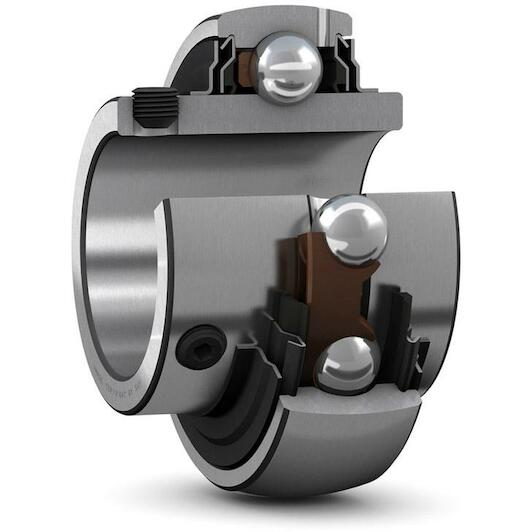

SKF YAR 203-010-2F Y insert bearing cylindrical with set screw for inch shaft, 15.9 x 40 mm

Recommended Retail Price €75.63
37.40 tax incl.
€30.91 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Delivery by DHL

Product description

Insert bearings are based on sealed deep groove ball bearings. This variant is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on both sides and is locked onto the shaft by tightening two (set) screws on the inner ring, making it easy to mount.

  • Designed for a constant and alternating rotation
  • Quick and easy to mount onto the shaft
  • Reduce noise and vibration levels
Key features according to our expert
  • Inner diameter: 15,875 mm
  • Width: 27,4 mm
  • Material (bearing): Steel
  • Material (cage): Plastic
  • High temperature: No
  • Bore type: Cylindrical
  • Inner ring extension: On both sides
  • Outer diameter: 40 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577754523
  • Supplier number: SKF YAR 203-010-2F
Inner diameter
15,875 mm
Width
27,4 mm
Material (bearing)
Steel
Material (cage)
Plastic
High temperature
No
Bore type
Cylindrical
Inner ring extension
On both sides
Outer diameter
40 mm
Width, outer ring
12
Basic static load rating
4.75
Relubrication feature
With
Lubricant
Grease
Rubber seating ring
Without
Sealing type
Contact, standard
Cage
Non-metallic
Material, bearing
Bearing steel
Sealing
Seal and flinger on both sides
Rolling elements
Balls
Application
For material handling applications
Retaining feature, inner ring
Set screws
Limiting speed
9500
Outer ring type
Spherical
Width, total
27.4
Width, inner ring
27.4
Shaft diameter
15.875
Bore diameter
15.875
Basic dynamic load rating
9.56
Coating
Without
Outside diameter
40
Note
Limiting speed with shaft tolerance h6
