SKF

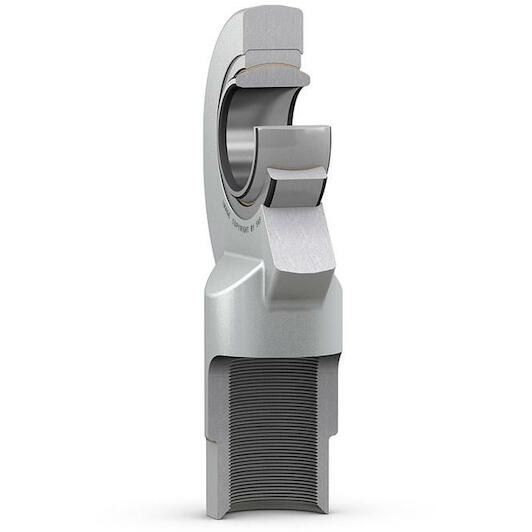

SKF SIL 6 C rod head with female thread, left-hand thread, M 6

Recommended Retail Price €165.61
81.80 tax incl.
€67.60 excl. VAT (incl. all environmental contributions)
On order: delivered from 27/05/2026
each

  • Delivery by DHL

Product description

These SKF rod ends contain a spherical plain bearing with a steel/PTFE sintered bronze contact surface combination. The bearing is maintenance-free. The female thread is available with a left- (prefix SIL) or right-hand thread.

  • Long service life
  • Maintenance-free
  • Suitable for heavy, constant direction loads
  • Low coefficient of friction
  • Simple and ready-to-mount
Key features according to our expert
  • Inner diameter: 6 mm
  • Connection type: Inner thread
  • Thread type: Metric - Left
  • Seal (bearing): Without seal
  • Maintenance free: Yes
  • Connection size: M6

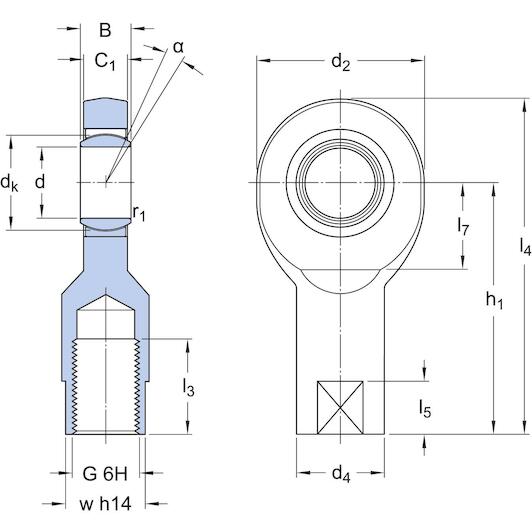

Specifications / All features
  • Brand: SKF
  • EAN: 7316577104403
  • Supplier number: SKF SIL 6 C
Inner diameter
6 mm
Connection type
Inner thread
Thread type
Metric - Left
Seal (bearing)
Without seal
Maintenance free
Yes
Connection size
M6
Bore diameter, bearing inner ring
6
Attachment feature, rod end shank
Left-hand female thread
Material, housing
Steel
Sliding contact surface combination
Steel/PTFE sintered bronze
Housing length, total
43
Maintenance
Maintenance-free
Thread designation
M 6
Material, outer ring
Deep-drawing steel
Outside diameter, housing eye
22
Sealing
Without
Basic static load rating
8.15
Material, inner ring
Bearing steel
Width, bearing inner ring
6
Width, housing eye
4.5
Basic dynamic load rating
3.6
Centre height, housing (from end of shank)
30
