SKF SIL 17 C rod head with female thread, left-hand thread 17 mm, M 16

Recommended Retail Price €190.15
93.95 tax incl.
€77.64 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Delivery by DHL

Product description

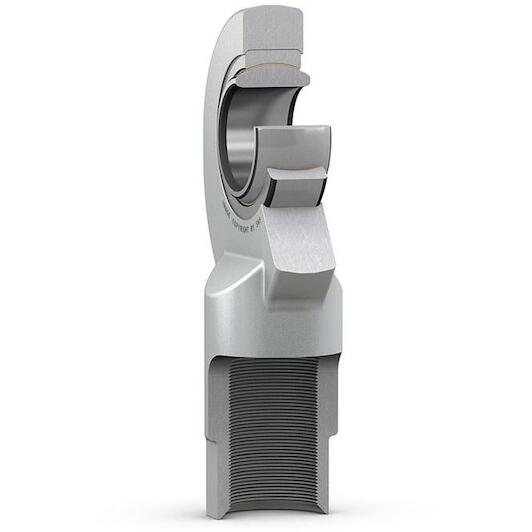

These SKF rod ends contain a spherical plain bearing with a steel/PTFE sintered bronze contact surface combination. The bearing is maintenance-free. The female thread is available with a left- (prefix SIL) or right-hand thread.

  • Long service life
  • Maintenance-free
  • Suitable for heavy, constant direction loads
  • Low coefficient of friction
  • Simple and ready-to-mount
Key features according to our expert
  • Inner diameter: 17 mm
  • Connection type: Inner thread
  • Thread type: Metric - Left
  • Seal (bearing): Without seal
  • Maintenance free: Yes
  • Connection size: M16

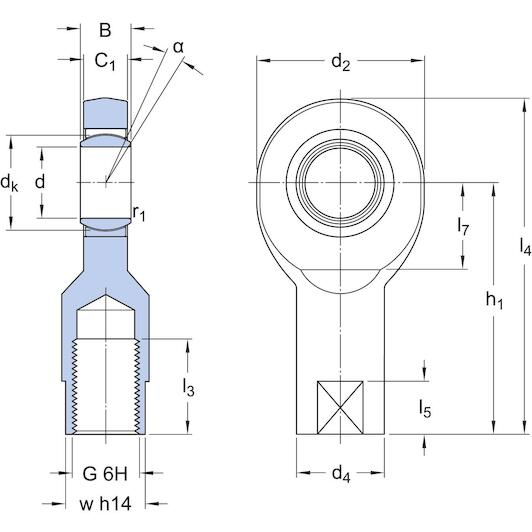

Specifications / All features
  • Brand: SKF
  • EAN: 7316571034553
  • Supplier number: SKF SIL 17 C
Inner diameter
17 mm
Connection type
Inner thread
Thread type
Metric - Left
Seal (bearing)
Without seal
Maintenance free
Yes
Connection size
M16
Bore diameter, bearing inner ring
17
Attachment feature, rod end shank
Left-hand female thread
Material, housing
Steel
Sliding contact surface combination
Steel/PTFE sintered bronze
Housing length, total
92
Maintenance
Maintenance-free
Thread designation
M 16
Material, outer ring
Deep-drawing steel
Outside diameter, housing eye
47
Sealing
Without
Basic static load rating
46.5
Material, inner ring
Bearing steel
Width, bearing inner ring
14
Width, housing eye
11.5
Basic dynamic load rating
22.4
Centre height, housing (from end of shank)
67
