SKF

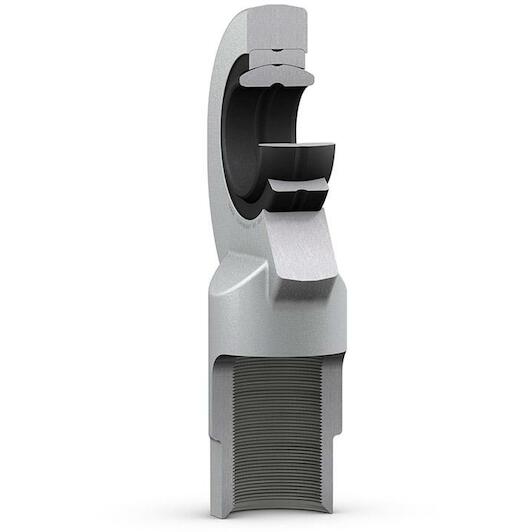

SKF SI 10 E Rod head with female thread 10 mm, M 10

Recommended Retail Price €103.01
50.80 tax incl.
€41.98 excl. VAT (incl. all environmental contributions)
On stock, immediately available. we have 2 products in stock.
each

  • Delivery by DHL

Product description

These SKF rod ends contain a spherical plain bearing with a steel/steel sliding contact surface combination. The bearing requires maintenance and can only be relubricated from the side. The female thread is available with a left- (prefix SIL) or right-hand thread.

  • Suitable for heavy static, alternating or impact loads
  • Simple and ready-to-mount
Key features according to our expert
  • Inner diameter: 10 mm
  • Connection type: Inner thread
  • Thread type: Metric
  • Seal (bearing): Without seal
  • Maintenance free: Nein
  • Connection size: M10
Specifications / All features
  • Brand: SKF
  • EAN: 7316577002853
  • Supplier number: SKF SI 10 E
Inner diameter
10 mm
Connection type
Inner thread
Thread type
Metric
Seal (bearing)
Without seal
Maintenance free
Nein
Connection size
M10
Bore diameter, bearing inner ring
10
Attachment feature, rod end shank
Right-hand female thread
Material, housing
Steel
Sliding contact surface combination
Steel/steel, standard
Housing length, total
60
Maintenance
Relubrication required
Thread designation
M 10
Material, outer ring
Bearing steel
Outside diameter, housing eye
30
Sealing
Without
Basic static load rating
19
Material, inner ring
Bearing steel
Width, bearing inner ring
9
Width, housing eye
7.5
Basic dynamic load rating
8.15
Centre height, housing (from end of shank)
43
