SKF

SKF SFIK 8 F rod head with female thread 8 mm

Recommended Retail Price €65.97
32.60 tax incl.
€26.94 excl. VAT (incl. all environmental contributions)
On order: delivered from 30/05/2026
each

  • Delivery by DHL

Product description

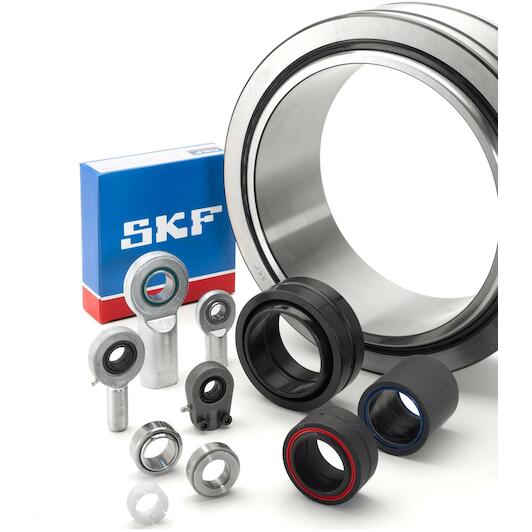

SKF rod ends consist of an eye-shaped head with an integral shank that forms a housing for a spherical plain bearing. These rod ends are used in applications such as hydraulic cylinders, steering links, tie rods, or anywhere a precision articulation joint is required. SKF provides both rod ends that require maintenance and rod ends that are maintenance-free.

  • Bearing housing combination for simple installation
  • Various designs for individual assemblies
  • Many sliding contact surface combinations
  • Available with female or male left- or right-hand thread or with a welding shank
Key features according to our expert
  • Inner diameter: 8 mm
  • Connection type: Inner thread
  • Thread type: Metric
  • Seal (bearing): Without seal
  • Connection size: M8
Specifications / All features
  • Brand: SKF
  • EAN: 7316570975598
  • Supplier number: SKF SFIK 8 F
Inner diameter
8 mm
Connection type
Inner thread
Thread type
Metric
Seal (bearing)
Without seal
Connection size
M8
Basic static load rating
4.3
Attachment feature, rod end shank
Right-hand female thread
Material, housing
Composite
Sliding contact surface combination
Steel/PTFE FRP
Housing length, total
51.5
Maintenance
Maintenance-free
Thread designation
M 8
Outside diameter, housing eye
31
Bore diameter, bearing inner ring
8
Sealing
Without
Material, inner ring
Bearing steel
Width, bearing inner ring
12
Width, housing eye
9
Basic dynamic load rating
3
Centre height, housing (from end of shank)
36
