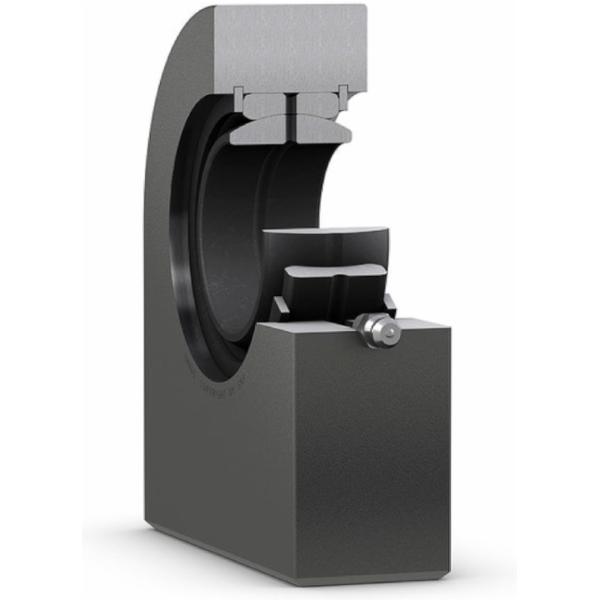

SKF SCF 60 ES rod head with welding neck 60 mm

Show more features

Inner diameter

60 mm

Seal (bearing)

Without seal

Maintenance free

Nein

Thread type

Not applicable

Maintenance

Relubrication required

Attachment feature, rod end shank

Rectangular section, for welding

Material, outer ring

Bearing steel

Centre height, housing (from end of shank)

100 mm

Outside diameter, housing eye

142.5 mm

Bore diameter, bearing inner ring

60 mm

Basic static load rating

530 kN

Material, housing

Steel

Sealing

Without

Material, inner ring

Bearing steel

Width, bearing inner ring

44 mm

Sliding contact surface combination

Steel/steel, standard

Width, housing eye

51.5 mm

Basic dynamic load rating

245 kN

Housing length, total

172.5 mm
