SKF SC 20 ES rod head with welding neck 20 mm

Recommended Retail Price €177.42

87.80 tax incl.

€72.56 excl. VAT (incl. all environmental contributions)

SKF SC 20 ES rod head with welding neck 20 mm

€87.80 Recommended Retail Price €177.42

On order: delivered from 27/05/2026

each

Delivery by DHL

Product information
Additional info

Product description

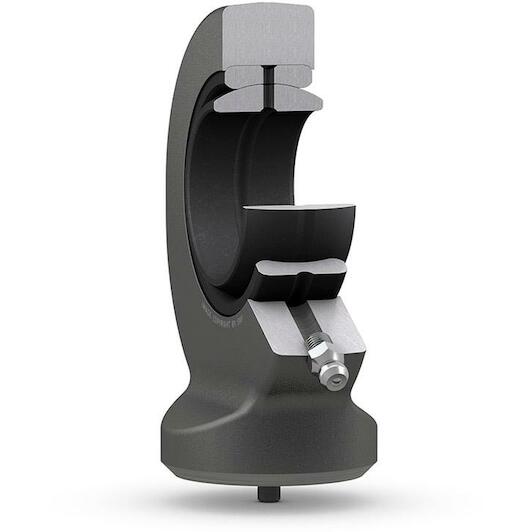

These SKF rod ends contain a spherical plain bearing with a steel/steel sliding contact surface combination. The bearing requires maintenance and can be relubricated via a lubrication hole or grease fitting in the housing and via the shaft. The dowel pin eases centring at the cylindrical section welding shank.

Suitable for heavy static, alternating or impact loads
Easy to relubricate
Easy to center

Key features according to our expert

Inner diameter: 20 mm
Seal (bearing): Without seal
Maintenance free: Nein
Thread type: Not applicable

Specifications / All features

Brand: SKF
01390480
EAN: 7316577023193
Supplier number: SKF SC 20 ES

Inner diameter: 20 mm
Seal (bearing): Without seal
Maintenance free: Nein
Thread type: Not applicable
Basic static load rating: 46.5
Attachment feature, rod end shank: Cylindrical section, with locating pin, for welding
Material, housing: Steel
Sliding contact surface combination: Steel/steel, standard
Housing length, total: 66
Maintenance: Relubrication required
Material, outer ring: Bearing steel
Outside diameter, housing eye: 54
Bore diameter, bearing inner ring: 20
Width, bearing inner ring: 16
Material, inner ring: Bearing steel
Sealing: Without
Width, housing eye: 13.5
Basic dynamic load rating: 30
Centre height, housing (from end of shank): 38
