SKF SAL 15 ES Rod head with male thread, left-hand thread 15 mm, M 14

SKF
Supplier number: SKF SAL 15 ES | EAN 7316577003430
Recommended Retail Price €161.58
79.80 tax incl.
€65.95 excl. VAT (incl. all environmental contributions)
On stock - immediately available | we have 2 products in stock.

  • Delivery by DHL
↓ Documents (1) ✆ Talk to a specialist


Product information
€79.80
In stock - tax incl.

Product information

Key features according to our expert

  • Inner diameter: 15 mm
  • Connection type: External thread
  • Thread type: Metric - Left
  • Sealing (bearing): Without seals
  • Maintenance free: Nein
  • Connection size: M14

Product description

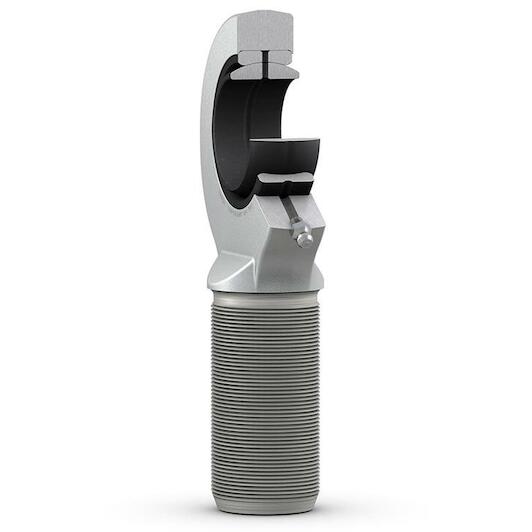

These SKF rod ends contain a spherical plain bearing with a steel/steel sliding contact surface combination. The bearing requires maintenance and can be relubricated via a lubrication hole in the housing and via the shaft. The male thread is available with a left- (prefix SAL) or a right-hand thread.

  • Suitable for heavy static, alternating or impact loads
  • Simple and ready-to-mount
  • Easy to relubricate

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter
15 mm
Connection type
External thread
Thread type
Metric - Left
Sealing (bearing)
Without seals
Maintenance free
Nein
Connection size
M14
Bore diameter, bearing inner ring
15
Attachment feature, rod end shank
Left-hand male thread
Material, housing
Steel
Sliding contact surface combination
Steel/steel, standard
Housing length, total
85
Maintenance
Relubrication required
Thread designation
M 14
Material, outer ring
Bearing steel
Outside diameter, housing eye
41
Sealing
Without
Basic static load rating
28
Material, inner ring
Bearing steel
Width, bearing inner ring
12
Width, housing eye
10.5
Basic dynamic load rating
17
Centre height, housing (from end of shank)
63
  • Brand SKF
  • EAN 7316577003430
  • Supplier number SKF SAL 15 ES
