SKF SAL 12 C Rod head with male thread, left-hand thread 12 mm, M 12

Supplier number: SKF SAL 12 C | EAN 7316577003416

Recommended Retail Price €187.03

92.40 tax incl.

€76.36 excl. VAT (incl. all environmental contributions)

On order: delivered from 20/10/2026

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Product information

€92.40

tax incl.

Key features according to our expert

Inner diameter: 12 mm
Connection type: External thread
Thread type: Metric - Left
Sealing (bearing): Without seals
Maintenance free: Yes
Connection size: M12

Product description

These SKF rod ends contain a spherical plain bearing with a steel/PTFE sintered bronze sliding contact surface combination. The bearing is maintenance-free. The male thread is available with a left- (prefix SAL) or right-hand thread.

Long service life
Maintenance-free
Suitable for heavy, constant direction loads
Low coefficient of friction
Simple and ready-to-mount

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 12 mm
Connection type: External thread
Thread type: Metric - Left
Sealing (bearing): Without seals
Maintenance free: Yes
Connection size: M12

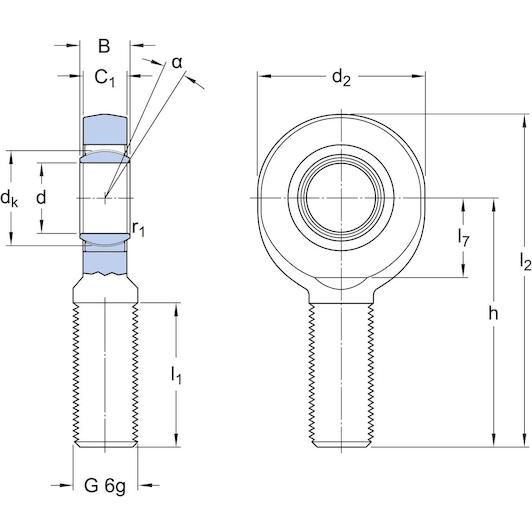

Bore diameter, bearing inner ring: 12
Attachment feature, rod end shank: Left-hand male thread
Material, housing: Steel
Sliding contact surface combination: Steel/PTFE sintered bronze
Housing length, total: 73
Maintenance: Maintenance-free
Thread designation: M 12
Material, outer ring: Deep-drawing steel
Outside diameter, housing eye: 35
Sealing: Without
Basic static load rating: 24.5
Material, inner ring: Bearing steel
Width, bearing inner ring: 10
Width, housing eye: 8.5
Basic dynamic load rating: 11.4
Centre height, housing (from end of shank): 54

Brand SKF
01390370
EAN 7316577003416
Supplier number SKF SAL 12 C
