What thread type does this SKF rod end have?

The rod end has a metric fine right-hand male thread sized M20 x 1.5.

What is the bore diameter of this rod end?

The inner bore diameter of this rod end is 20 mm.

Does the SKF SAKB 20 F require lubrication?

No, this rod end is maintenance-free thanks to its self-lubricating PTFE sliding surface.

Does this rod end feature built-in seals?

No, this model is designed without seals (open type).

SKF SAKB 20 F Rod head with male thread 20 mm, M 20x1.5

Supplier number: SKF SAKB 20 F | EAN 7316577003768

Recommended Retail Price €211.91

104.80 tax incl.

€86.61 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 3 products in stock.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable linkage control with Skf

Practical benefits

Completely maintenance-free design: The internal PTFE composite sliding layer eliminates the need for relubrication throughout its entire service life.
Secure direct male threading: The M20x1.5 metric male thread allows you to easily achieve a rigid, stable connection in mechanical linkages.
Smooth angular misalignment handling: The precision 20 mm bore smoothly accommodates pivoting motions and heavy constant directional loads.

In a nutshell

The right choise for

With the Skf sakb 20 f rod end, you achieve dependable mechanical connections without the hassle of routine maintenance. Thanks to its self-lubricating ptfe sliding surface, this rod end requires no relubrication, preventing downtime and saving valuable time. The fine metric male thread M20x1.5 ensures a direct, solid, and precise fit in linkage systems, cylinder mountings, or control rods. Featuring a 20 mm bore, this open design smoothly compensates for angular misalignments while handling pivoting motions and heavy directional loads with precision.

Product information FAQ

€104.80

In stock - tax incl.

Key features according to our expert

Inner diameter: 20 mm
Connection type: External thread
Thread type: Metric fine
Sealing (bearing): Without seals
Maintenance free: Yes
Connection size: M20 x 1,5

Product description

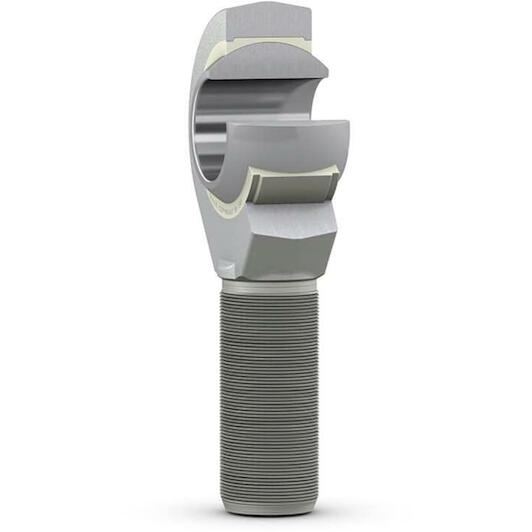

These SKF rod ends have an injection moulded sliding layer of PTFE FRP between the housing and the inner ring. This sliding contact surface combination is maintenance-free. The male thread is available with a left- (prefix SAL) or right-hand thread.

Long service life
Maintenance-free
Relatively insensitive to contaminants
Low coefficient of friction
Simple and ready-to-mount

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 20 mm
Connection type: External thread
Thread type: Metric fine
Sealing (bearing): Without seals
Maintenance free: Yes
Connection size: M20 x 1,5
Basic static load rating: 50
Attachment feature, rod end shank: Right-hand male thread
Material, housing: Steel
Sliding contact surface combination: Steel/PTFE FRP

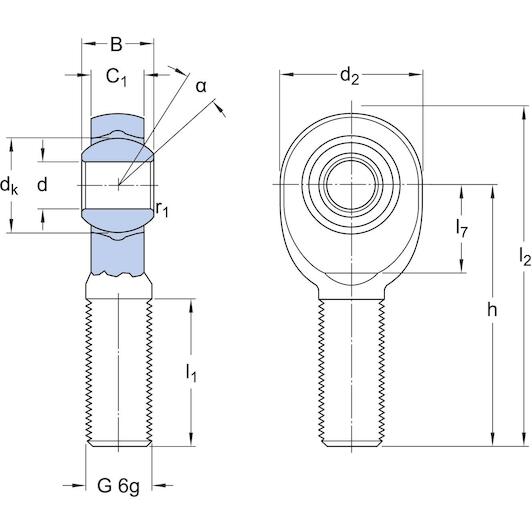

Housing length, total: 106
Maintenance: Maintenance-free
Thread designation: M 20x1.5
Outside diameter, housing eye: 51
Bore diameter, bearing inner ring: 20
Sealing: Without
Material, inner ring: Bearing steel
Width, bearing inner ring: 25
Width, housing eye: 18.5
Basic dynamic load rating: 31
Centre height, housing (from end of shank): 78

Brand SKF
01390182
EAN 7316577003768
Supplier number SKF SAKB 20 F

Frequently asked questions about this product

Answered by specialists

What thread type does this SKF rod end have?: The rod end has a metric fine right-hand male thread sized M20 x 1.5.
What is the bore diameter of this rod end?: The inner bore diameter of this rod end is 20 mm.
Does the SKF SAKB 20 F require lubrication?: No, this rod end is maintenance-free thanks to its self-lubricating PTFE sliding surface.
Does this rod end feature built-in seals?: No, this model is designed without seals (open type).
