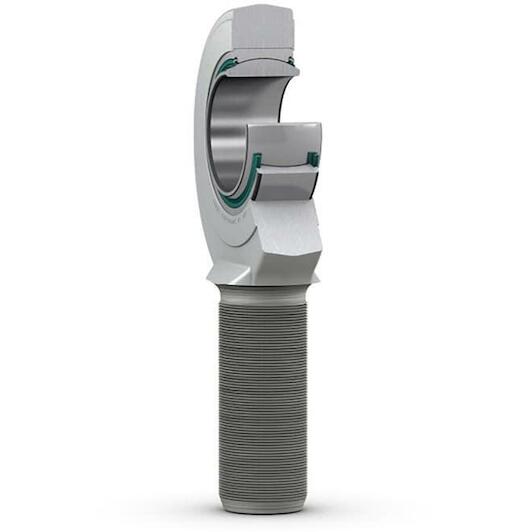

SKF SA 60 TXE-2LS Rod head with male thread 60 mm, M 60x4

SKF
Supplier number: SKF SA 60 TXE-2LS | EAN 7316572111086
Recommended Retail Price €2,083.18
1,031.20 tax incl.
€852.23 excl. VAT (incl. all environmental contributions)
On order: delivered from 16/10/2026

  • Delivery by DHL
↓ Documents (1) ✆ Talk to a specialist


Product information
€1,031.20
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 60 mm
  • Connection type: External thread
  • Thread type: Metric fine
  • Sealing (bearing): Sealed on both sides
  • Maintenance free: Yes
  • Connection size: M60 x 4

Product description

These SKF rod ends contain a spherical plain bearing with a steel/PTFE fabric sliding contact surface combination and a triple-lip, heavy duty contact seal on both sides. The bearing is maintenance-free. The male thread is available with a left- (prefix SAL) or right-hand thread. Some sizes have different fitting dimensions (SA(L)A series).

  • Long service life
  • Maintenance-free
  • Suitable for very heavy, constant direction loads
  • Low coefficient of friction
  • Simple and ready-to-mount

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter
60 mm
Connection type
External thread
Thread type
Metric fine
Sealing (bearing)
Sealed on both sides
Maintenance free
Yes
Connection size
M60 x 4
Bore diameter, bearing inner ring
60
Attachment feature, rod end shank
Right-hand male thread
Material, housing
Steel
Sliding contact surface combination
Steel/PTFE fabric
Housing length, total
296
Maintenance
Maintenance-free
Thread designation
M 60x4
Material, outer ring
Bearing steel
Sealing type
Triple-lip
Outside diameter, housing eye
137
Width, bearing inner ring
44
Basic static load rating
360
Material, inner ring
Bearing steel
Sealing
Seal on both sides
Width, housing eye
39
Basic dynamic load rating
695
Centre height, housing (from end of shank)
225
  • Brand SKF
  • EAN 7316572111086
  • Supplier number SKF SA 60 TXE-2LS
