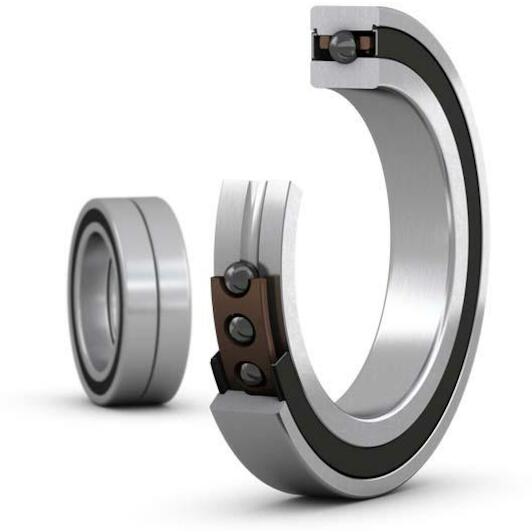

SKF S71916 ACB/HCP4ADGA Single-row angular contact ball bearing set high speed B-design with seals, matched 80 mm 2-piece

Supplier number: SKF S71916 ACB/HCP4ADGA | EAN 07316574889334

Recommended Retail Price €4,125.37

2,042.40 tax incl.

€1,687.93 excl. VAT (incl. all environmental contributions)

On order: delivered from 24/10/2026

Delivery by DHL

✆ Talk to a specialist

Product information

€2,042.40

tax incl.

Key features according to our expert

Inner diameter: 80 mm
Width: 32 mm
Number of rows: 2
Axial clearance: Not applicable
Sealing (bearing): Sealed on both sides
Material (bearing seal): Rubber
Material (cage): Plastic
Outer diameter: 110 mm

Product description

These matched sets of two super-precision, high-speed B design, single row angular contact ball bearings with seals are available in a variety of arrangements. Compared to the equivalent SKF E design high-speed bearings, these are suited for lighter loads.

Very high running accuracy
Accommodate high speeds
Reduced stresses on rolling contact surfaces
Non-contact seals
Integral sealing prolongs bearing service life

All Features

Inner diameter: 80 mm
Width: 32 mm
Number of rows: 2
Axial clearance: Not applicable
Sealing (bearing): Sealed on both sides
Material (bearing seal): Rubber
Material (cage): Plastic
Outer diameter: 110 mm
Matched arrangement: Universal matching
Tolerance class: P4A
Contact type: Normal contact (two-point contact)
Basic static load rating: 28
Cage: Non-metallic
Lubricant: Grease
Design: High-speed B
Sealing type: Non-contact
Ring type: One-piece inner and outer rings
Material, bearing: Hybrid (ceramic balls)
Universal matching bearing: Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
Number of bearings in matched set: 2
Sealing: Seal on both sides
Contact angle: 25
Matched condition (axial clearance/ preload): Extra light preload
Bore diameter: 80
Basic dynamic load rating: 24.2
Coating: Without
Outer diameter: 110
Note: Refer to catalogue data or contact SKF for the attainable speeds
