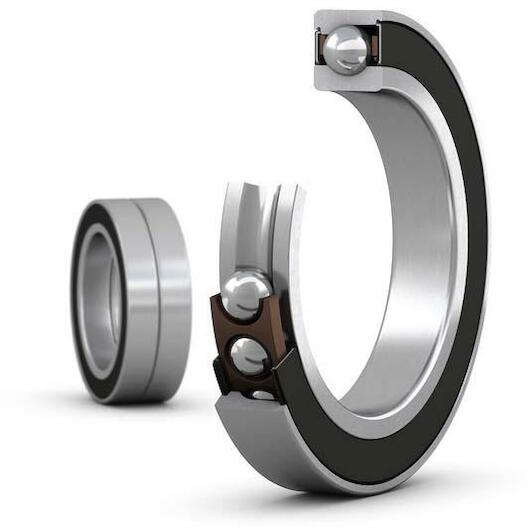

SKF S7024 CD/P4ADGA Single-row angular contact ball bearing set D-design high load capacity pairable 2-piece with seals

Supplier number: SKF S7024 CD/P4ADGA | EAN 07316577590664

Recommended Retail Price €6,310.27

3,124.20 tax incl.

€2,581.98 excl. VAT (incl. all environmental contributions)

On order: delivered from 21/10/2026

Delivery by DHL

✆ Talk to a specialist

Product information

€3,124.20

tax incl.

Key features according to our expert

Inner diameter: 120 mm
Width: 56 mm
Number of rows: 2
Axial clearance: Not applicable
Sealing (bearing): Sealed on both sides
Material (bearing seal): Rubber
Material (cage): Plastic
Outer diameter: 180 mm

Product description

These matched sets of two super-precision, high-capacity, D design, single row angular contact ball bearings with seals are available in a variety of arrangements. They are designed to accommodate heavy loads at relatively high speeds under low to moderate operating temperatures.

Very high running accuracy
Very high load carrying capacity
Non-contact seals
Integral sealing prolongs bearing service life

All Features

Inner diameter: 120 mm
Width: 56 mm
Number of rows: 2
Axial clearance: Not applicable
Sealing (bearing): Sealed on both sides
Material (bearing seal): Rubber
Material (cage): Plastic
Outer diameter: 180 mm
Matched arrangement: Universal matching
Tolerance class: P4A
Contact type: Normal contact (two-point contact)
Basic static load rating: 245
Cage: Non-metallic
Lubricant: Grease
Design: High-capacity D
Sealing type: Non-contact
Ring type: One-piece inner and outer rings
Material, bearing: Bearing steel
Universal matching bearing: Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
Number of bearings in matched set: 2
Sealing: Seal on both sides
Contact angle: 15
Matched condition (axial clearance/ preload): Extra light preload
Bore diameter: 120
Basic dynamic load rating: 190
Coating: Without
Outer diameter: 180
Note: Refer to catalogue data or contact SKF for the attainable speeds
