SKF S7016 CE/HCP4ADGA Single-row angular contact ball bearing set high speed E-design, matched 80 mm 2-piece with seals

Recommended Retail Price €6,004.53

2,972.80 tax incl.

€2,456.86 excl. VAT (incl. all environmental contributions)

SKF S7016 CE/HCP4ADGA Single-row angular contact ball bearing set high speed E-design, matched 80 mm 2-piece with seals

€2,972.80 Recommended Retail Price €6,004.53

On order: delivered from 26/05/2026

each

Delivery by DHL

Product information

Product description

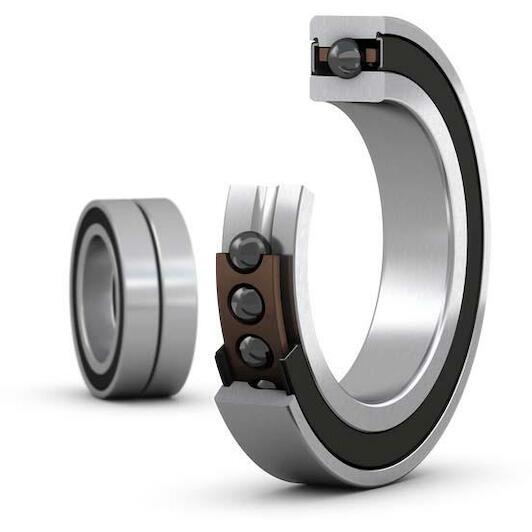

These matched sets of two super-precision, high-speed, E design, single row angular contact ball bearings with seals are available in a variety of arrangements. Compared to the equivalent SKF B design high-speed bearings, these have a slightly higher speed capability and can accommodate heavier loads.

Very high running accuracy
Accommodate very high speeds
Non-contact seals
Integral sealing prolongs bearing service life

Key features according to our expert

Inner diameter: 80 mm
Width: 44 mm
Number of rows: 2
Axial clearance: Not applicable
Seal (bearing): Double-sided sealed
Material (bearing seal): Rubber
Material (cage): Plastic
Outer diameter: 125 mm

Specifications / All features

Brand: SKF
08124221
EAN: 07316574466689
Supplier number: SKF S7016 CE/HCP4ADGA

Inner diameter: 80 mm
Width: 44 mm
Number of rows: 2
Axial clearance: Not applicable
Seal (bearing): Double-sided sealed
Material (bearing seal): Rubber
Material (cage): Plastic
Outer diameter: 125 mm
Matched arrangement: Universal matching
Tolerance class: P4A
Contact type: Normal contact (two-point contact)
Basic static load rating: 56
Cage: Non-metallic
Lubricant: Grease
Design: High-speed E
Sealing type: Non-contact
Ring type: One-piece inner and outer rings
Material, bearing: Hybrid (ceramic balls)
Universal matching bearing: Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
Number of bearings in matched set: 2
Sealing: Seal on both sides
Contact angle: 15
Matched condition (axial clearance/ preload): Extra light preload
Bore diameter: 80
Basic dynamic load rating: 55.3
Coating: Without
Outside diameter: 125
Note: Refer to catalogue data or contact SKF for the attainable speeds
