SKF S7015 ACD/P4ADGB Single-row angular contact ball bearing set D-design high load capacity pairable 2-piece with seals

Recommended Retail Price €2,943.23

1,456.95 tax incl.

€1,204.09 excl. VAT (incl. all environmental contributions)

SKF S7015 ACD/P4ADGB Single-row angular contact ball bearing set D-design high load capacity pairable 2-piece with seals

€1,456.95 Recommended Retail Price €2,943.23

On order: delivered from 26/05/2026

each

Delivery by DHL

Product information

Product description

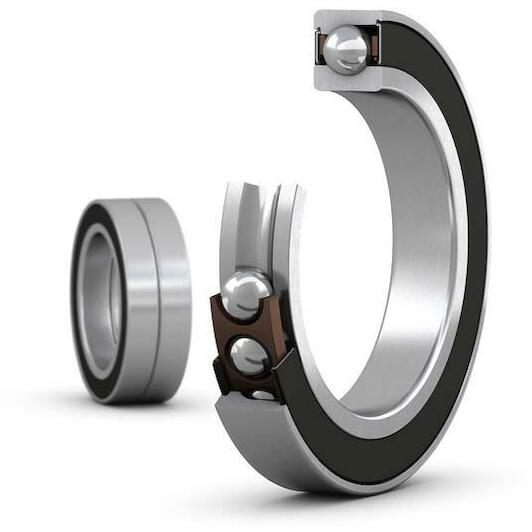

These matched sets of two super-precision, high-capacity, D design, single row angular contact ball bearings with seals are available in a variety of arrangements. They are designed to accommodate heavy loads at relatively high speeds under low to moderate operating temperatures.

Very high running accuracy
Very high load carrying capacity
Non-contact seals
Integral sealing prolongs bearing service life

Key features according to our expert

Inner diameter: 75 mm
Width: 40 mm
Number of rows: 2
Axial clearance: Not applicable
Seal (bearing): Double-sided sealed
Material (bearing seal): Rubber
Material (cage): Plastic
Outer diameter: 115 mm

Specifications / All features

Brand: SKF
08124856
EAN: 07316580408871
Supplier number: SKF S7015 ACD/P4ADGB

Inner diameter: 75 mm
Width: 40 mm
Number of rows: 2
Axial clearance: Not applicable
Seal (bearing): Double-sided sealed
Material (bearing seal): Rubber
Material (cage): Plastic
Outer diameter: 115 mm
Matched arrangement: Universal matching
Tolerance class: P4A
Contact type: Normal contact (two-point contact)
Basic static load rating: 93
Cage: Non-metallic
Lubricant: Grease
Design: High-capacity D
Sealing type: Non-contact
Ring type: One-piece inner and outer rings
Material, bearing: Bearing steel
Universal matching bearing: Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
Number of bearings in matched set: 2
Sealing: Seal on both sides
Contact angle: 25
Matched condition (axial clearance/ preload): Light preload
Bore diameter: 75
Basic dynamic load rating: 80.6
Coating: Without
Outside diameter: 115
Note: Refer to catalogue data or contact SKF for the attainable speeds
