Thrust washer

Thrust washers are thin plain bearing rings that take axial forces between a rotating part and a stationary face, without rolling elements. Designers and maintenance technicians fit them where a gear, hinge or shaft runs against a housing and wear or friction has to be kept down.

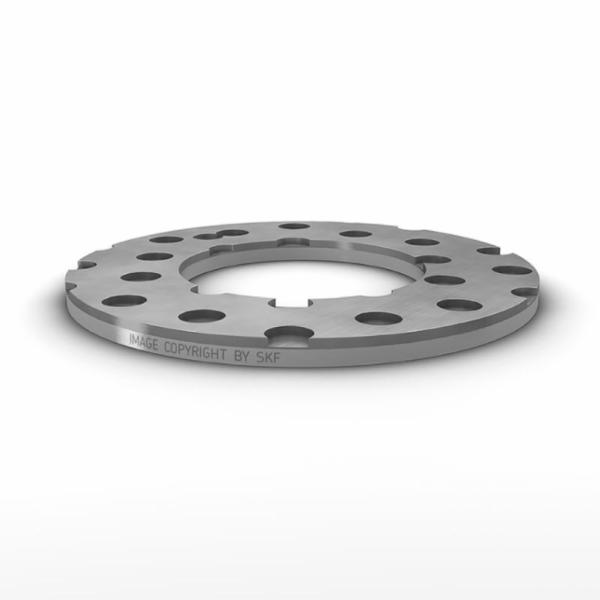

These SKF PCMW thrust washers are composite rings in two material versions. The type with E in the code has a PTFE sliding layer, the type with M a POM sliding layer. The choice depends on the application: look at lubrication, speed and load at the bearing position and follow the design specification.

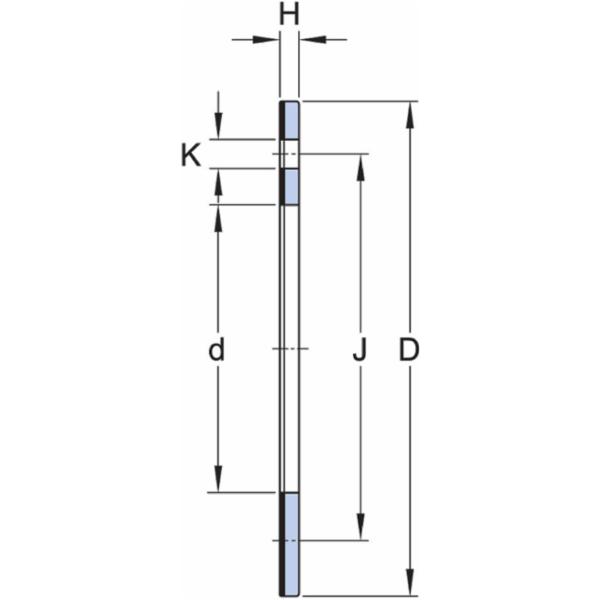

The size is in the product name as bore x outside diameter x thickness, for example 32 x 54 x 1.5 mm. Thickness is 1.5 or 2 mm, which needs little installation space. When replacing, take all three dimensions from the old washer. These washers belong to the bushings, thrust washers and strips for plain bearings, where bushings take the radial load at the same bearing position.

⚠️
