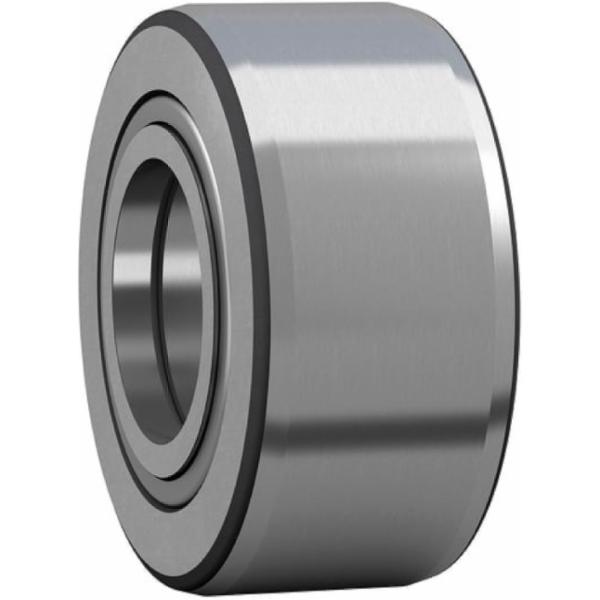

SKF NUTR 2562 X support roller with inner ring and flange seal (Yoke type track roller) 62 x 25 x 25 mm
Key features according to our expert
- Inner diameter: 25 mm
- Width: 25 mm
- Outer diameter: 62 mm
Specifications / All features
- Brand: SKF
- EAN: 7316577723499
- Supplier number: SKF NUTR 2562 X
- Inner diameter
- 25 mm
- Width
- 25 mm
- Outer diameter
- 62 mm
- Axial guidance of outer ring
- Yes
- Functional outside diameter
- 62 mm
- Material, bearing
- Bearing steel
- Cage
- Without
- Sealing type
- Labyrinth
- Width, outer ring
- 24 mm
- Lubricant
- Grease
- Relubrication feature
- With
- Basic static load rating
- 48 kN
- Radial internal clearance
- Between C2 and CN
- Tolerance class
- Other
- Bearing part
- Complete track roller
- Number of flanges, outer ring
- 2
- Sealing
- Seal on both sides
- Width, total
- 25 mm
- Outer ring profile
- Cylindrical
- Limiting speed
- 3,200 r/min
- Bore diameter
- 25 mm
- Number of rows
- 2
- Basic dynamic load rating
- 35.8 kN
- Coating
- Without
- Rolling elements
- Cylindrical rollers
