High radial performance with Skf NUP 2210 ECP
- High radial load capacity: You handle heavy radial forces smoothly and reliably thanks to the single-row roller configuration.
- Bidirectional axial shaft location: The NUP design allows you to accurately locate and stabilize the shaft in both directions.
- Quick and easy assembly: With the separable component layout, you can mount and inspect rings individually without hassle.

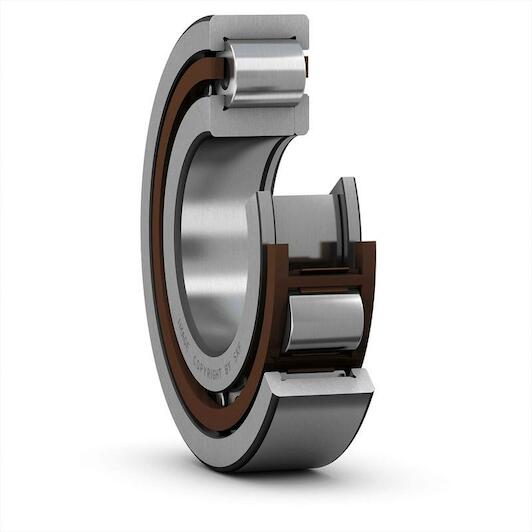

With the Skf nup 2210 ecp single-row cylindrical roller bearing, you easily handle heavy radial loads in industrial machinery and drive systems. Thanks to the nup design with a loose flange ring, you accurately locate and support the shaft axially in both directions without needing a separate thrust bearing. Featuring dimensions of 50 x 90 x 23 mm, a durable PA66 polyamide cage, and normal radial clearance CN, this open bearing ensures smooth operation at moderate to high speeds. Its separable construction makes mounting, inspection, and maintenance fast and straightforward in gearboxes, pumps, and electric motor assemblies.
Product description
Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and one integral flange and one loose flange ring on the inner ring, NUP design bearings can locate the shaft axially in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
- High radial load carrying capacity
- Low friction
- Long service life
- Locate the shaft axially in both directions
- Separable design
