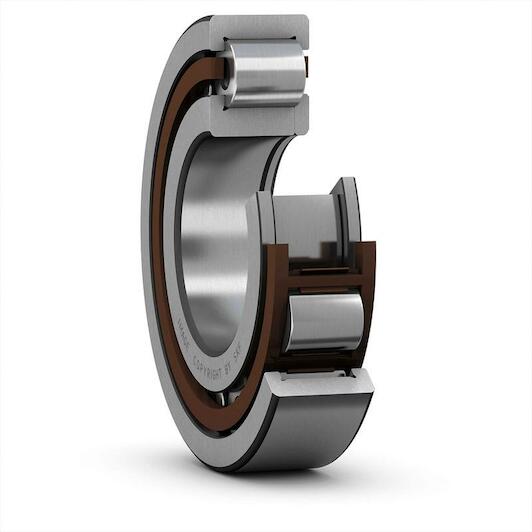

SKF NUP 207 ECP single-row cylindrical roller bearing 35 x 72 x 17 mm

Supplier number: SKF NUP 207 ECP | EAN 7316577029645

Recommended Retail Price €195.50

96.60 tax incl.

€79.83 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable motion with Skf

Practical benefits

High radial load capacity: You effortlessly handle demanding radial forces thanks to the robust single row roller construction.
Double direction axial location: With the smart NUP design, you securely locate the shaft in both axial directions during heavy-duty operation.
Quick and separable mounting: The separable design allows you to install, remove, and maintain the bearing components with complete ease.

In a nutshell

The right choise for

With the Skf nup 207 ecp single row cylindrical roller bearing, you achieve dependable performance in demanding machinery assemblies. Measuring 35 x 72 x 17 mm, this compact bearing easily handles heavy radial loads. Thanks to the smart nup design with a loose flange ring, you securely locate the shaft in both axial directions, making it an excellent choice for industrial gearboxes, electric motors, pumps, and compressors. The lightweight polyamide cage (ECP) minimizes frictional heat during continuous use. Furthermore, the separable construction with a cylindrical bore and normal radial internal clearance (CN) ensures fast mounting and straightforward inspection.

Product information FAQ

€96.60

In stock - tax incl.

Key features according to our expert

Inner diameter: 35 mm
Width: 17 mm
Number of rows: 1
Radial clearance: CN (Normal)
Material (cage): Plastic
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Bore type: Cylindrical
Outer diameter: 72 mm

Product description

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and one integral flange and one loose flange ring on the inner ring, NUP design bearings can locate the shaft axially in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

High radial load carrying capacity
Low friction
Long service life
Locate the shaft axially in both directions
Separable design

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 35 mm
Width: 17 mm
Number of rows: 1
Radial clearance: CN (Normal)
Material (cage): Plastic
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Bore type: Cylindrical
Outer diameter: 72 mm
Relubrication feature: Without
Tolerance class: Normal
Radial internal clearance: CN
Loose flange: Inner ring loose flange
Basic static load rating: 48
Cage: Non-metallic
Reference speed: 11000
Skf performance class: SKF Explorer
Lubricant: None
Locating feature, bearing outer ring: None
Number of flanges, inner ring: 1
Bearing part: Complete bearing
Sealing: Without
Number of flanges, outer ring: 2
Limiting speed: 12000
Bore diameter: 35
Basic dynamic load rating: 56
Coating: Without
Outside diameter: 72
Axial displacement capability: None

Brand SKF
01070163
EAN 7316577029645
Supplier number SKF NUP 207 ECP

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF bearing?: The bearing has a 35 mm bore diameter, a 72 mm outside diameter, and a width of 17 mm.
What does the NUP design mean for this bearing?: The NUP design features two integral flanges on the outer ring and one integral flange with a loose flange ring on the inner ring to fix shafts axially in both directions.
What material is the cage made of?: The cage of this ECP version is made of glass-fibre reinforced polyamide (polymer).
What is the radial internal clearance of this bearing?: This bearing has standard normal radial internal clearance (CN).
Does this cylindrical roller bearing come with seals?: No, this is an open cylindrical roller bearing supplied without seals.
