SKF

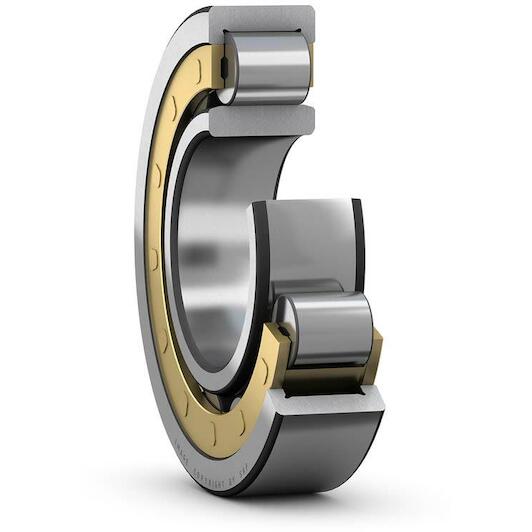

SKF NU 334 ECM single-row cylindrical roller bearing 170 x 360 x 72 mm

Recommended Retail Price €7,694.56
3,809.40 tax incl.
€3,148.26 excl. VAT (incl. all environmental contributions)
On order: delivered from 30/05/2026
each

  • Delivery by DHL

Product description

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

  • High radial load carrying capacity
  • Low friction
  • Long service life
  • Accommodate axial displacement in both directions
  • Separable design
Key features according to our expert
  • Inner diameter: 170 mm
  • Width: 72 mm
  • Number of rows: 1
  • Radial clearance: CN (Normal)
  • Material (cage): Brass (solid)
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Bore type: Cylindrical
  • Outer diameter: 360 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316572446423
  • Supplier number: SKF NU 334 ECM
Inner diameter
170 mm
Width
72 mm
Number of rows
1
Radial clearance
CN (Normal)
Material (cage)
Brass (solid)
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Bore type
Cylindrical
Outer diameter
360 mm
Basic static load rating
1180
Tolerance class
Normal
Radial internal clearance
CN
Loose flange
None
Relubrication feature
Without
Reference speed
1700
Lubricant
None
Cage
Machined metal
Locating feature, bearing outer ring
None
Candidate for remanufacturing
Yes
Bearing part
Complete bearing
Sealing
Without
Number of flanges, outer ring
2
Limiting speed
2200
Bore diameter
170
Basic dynamic load rating
952
Coating
Without
Outside diameter
360
Axial displacement capability
In both directions
