SKF NU 313 ECJ Single-row cylindrical roller bearing 65 x 140 x 33 mm

Supplier number: SKF NU 313 ECJ | EAN 7316577034922

Recommended Retail Price €477.42

236.20 tax incl.

€195.21 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable capacity for heavy radial loads

Practical benefits

Skf NU 313 ECJ: With the Skf NU 313 ECJ, you can support high radial loads during high-speed continuous operations.
Simple and separable mounting: The separable design enables you to mount the inner and outer rings independently with ease.
Smooth axial displacement: You accommodate thermal shaft expansion effortlessly thanks to the flangeless inner ring design.

Product information

€236.20

In stock - tax incl.

Key features according to our expert

Inner diameter: 65 mm
Width: 33 mm
Number of rows: 1
Radial clearance: CN (Normal)
Material (cage): Brass (sheet)
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Bore type: Cylindrical
Outer diameter: 140 mm

Product description

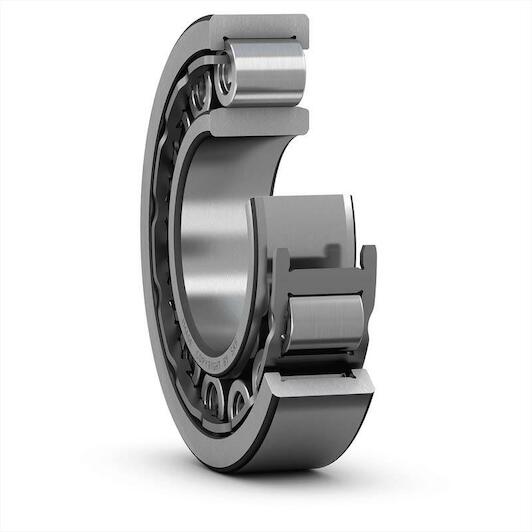

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
