What are the dimensions of this SKF bearing?

This cylindrical roller bearing has a 65 mm bore, 140 mm outer diameter, and 48 mm width.

What radial internal clearance does this bearing have?

This bearing has standard normal radial internal clearance (CN).

What does the NU design indicate?

The NU design features two integral flanges on the outer ring and none on the inner ring, allowing axial displacement.

What material is the cage made of?

The cage of the SKF NU 2313 ECP is made of glass fiber reinforced polyamide (polymer).

Does this roller bearing have seals?

No, this is an open bearing without built-in seals.

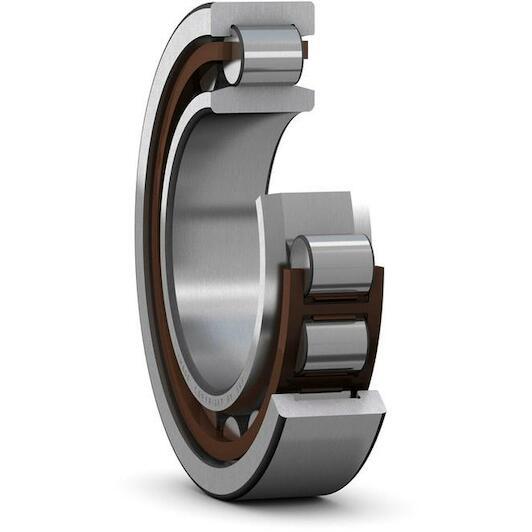

SKF NU 2313 ECP single-row cylindrical roller bearing 65 x 140 x 48 mm

Supplier number: SKF NU 2313 ECP | EAN 7316577027276

Recommended Retail Price €647.98

320.80 tax incl.

€265.12 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Dependable performance with Skf

Practical benefits

High radial load capacity: The robust cylindrical roller design allows you to handle heavy radial loads effectively in demanding machinery.
Quick and simple installation: With its separable inner ring construction, you mount and maintain the bearing components independently with ease.
Smooth low-friction operation: The durable polyamide cage reduces friction, ensuring you achieve quiet rotation and an extended service life.

In a nutshell

The right choise for

With the Skf nu 2313 ecp single row cylindrical roller bearing, you handle heavy radial loads reliably in industrial machinery, gearboxes, and electric motors. Thanks to the nu design with two integral flanges on the outer ring and a separable inner ring, it smoothly accommodates axial displacement caused by thermal expansion. The separable design allows for quick, effortless mounting and straightforward maintenance. In addition, the glass-fibre reinforced polyamide cage significantly reduces friction, ensuring quiet operation and an extended service life in demanding environments.

Product information FAQ

€320.80

In stock - tax incl.

Key features according to our expert

Inner diameter: 65 mm
Width: 48 mm
Number of rows: 1
Radial clearance: CN (Normal)
Material (cage): Plastic
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Bore type: Cylindrical
Outer diameter: 140 mm

Product description

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

High radial load carrying capacity
Low friction
Long service life
Accommodate axial displacement in both directions
Separable design

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 65 mm
Width: 48 mm
Number of rows: 1
Radial clearance: CN (Normal)
Material (cage): Plastic
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Bore type: Cylindrical
Outer diameter: 140 mm
Basic static load rating: 290
Tolerance class: Normal
Radial internal clearance: CN
Loose flange: None
Cage: Non-metallic
Relubrication feature: Without
Reference speed: 5300
Skf performance class: SKF Explorer
Lubricant: None
Locating feature, bearing outer ring: None
Bearing part: Complete bearing
Sealing: Without
Number of flanges, outer ring: 2
Limiting speed: 6000
Bore diameter: 65
Basic dynamic load rating: 285
Coating: Without
Outer diameter: 140
Axial displacement capability: In both directions

Brand SKF
01070684
EAN 7316577027276
Supplier number SKF NU 2313 ECP

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF bearing?: This cylindrical roller bearing has a 65 mm bore, 140 mm outer diameter, and 48 mm width.
What radial internal clearance does this bearing have?: This bearing has standard normal radial internal clearance (CN).
What does the NU design indicate?: The NU design features two integral flanges on the outer ring and none on the inner ring, allowing axial displacement.
What material is the cage made of?: The cage of the SKF NU 2313 ECP is made of glass fiber reinforced polyamide (polymer).
Does this roller bearing have seals?: No, this is an open bearing without built-in seals.
