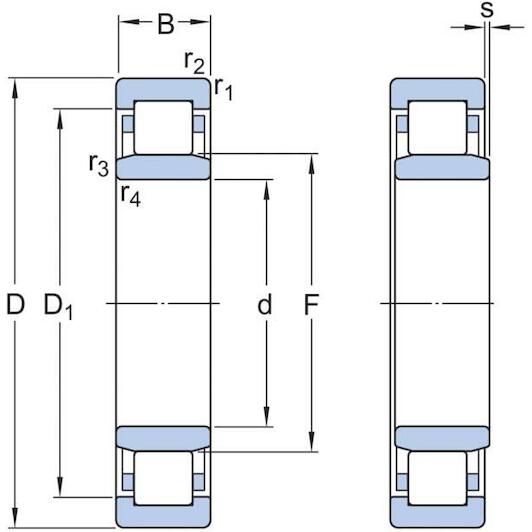

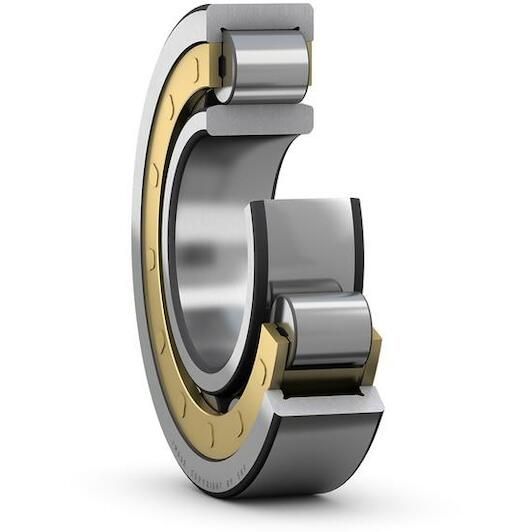

SKF NU 2218 ECM Single-row cylindrical roller bearing with NU design 90 mm

Recommended Retail Price €1,303.28
645.20 tax incl.
€533.22 excl. VAT (incl. all environmental contributions)
On order: delivered from 23/05/2026
each

  • Delivery by DHL

Product description

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

  • High radial load carrying capacity
  • Low friction
  • Long service life
  • Accommodate axial displacement in both directions
  • Separable design
Key features according to our expert
  • Inner diameter: 90 mm
  • Width: 40 mm
  • Number of rows: 1
  • Radial clearance: CN (Normal)
  • Material (cage): Brass (solid)
  • Seal (bearing): Without seal
  • Bore type: Cylindrical
  • Outer diameter: 160 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316574320448
  • Supplier number: SKF NU 2218 ECM
Inner diameter
90 mm
Width
40 mm
Number of rows
1
Radial clearance
CN (Normal)
Material (cage)
Brass (solid)
Seal (bearing)
Without seal
Bore type
Cylindrical
Outer diameter
160 mm
Basic static load rating
315
Tolerance class
Normal
Radial internal clearance
CN
Loose flange
None
Lubricant
None
Relubrication feature
Without
Reference speed
4500
Skf performance class
SKF Explorer
Locating feature, bearing outer ring
None
Cage
Machined metal
Bearing part
Complete bearing
Sealing
Without
Number of flanges, outer ring
2
Limiting speed
5000
Bore diameter
90
Basic dynamic load rating
280
Coating
Without
Outside diameter
160
Axial displacement capability
In both directions
