What are the dimensions of this SKF cylindrical roller bearing?

This bearing has a bore diameter of 80 mm, an outside diameter of 140 mm, and a width of 33 mm.

What material is the cage made from?

This bearing is equipped with a glass fibre reinforced polyamide (plastic) cage.

What internal radial clearance does this bearing have?

This model features standard normal radial internal clearance (CN).

Is this bearing sealed?

No, this is an open bearing without seals and requires lubrication before operation.

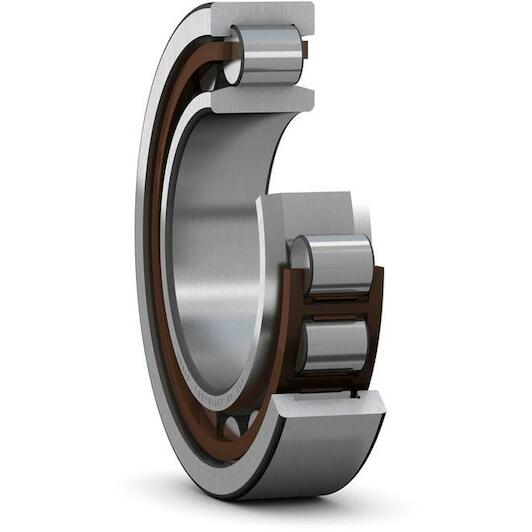

SKF NU 2216 ECP single-row cylindrical roller bearing 80 x 140 x 33 mm

Supplier number: SKF NU 2216 ECP | EAN 7316577065179

Recommended Retail Price €420.08

207.80 tax incl.

€171.74 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 3 products in stock.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

High radial capacity for demanding machinery

Practical benefits

High radial load rating: The Skf cylindrical roller bearing handles heavy radial forces at high speeds, keeping your equipment running smoothly.
Simple separable mounting: Thanks to the separable design, you can mount, dismount, and inspect individual bearing components quickly and easily.
Free axial displacement: With no flanges on the inner ring, the bearing accommodates thermal shaft expansion in both directions effortlessly.

In a nutshell

The right choise for

Keep your heavy machinery running smoothly and reliably with the Skf nu 2216 ecp single row cylindrical roller bearing. Built to handle heavy radial loads at high operating speeds, it is suited for electric motors, gearboxes, pumps, and compressors. The nu design features a flangeless inner ring that accommodates thermal shaft elongation in both directions, making it ideal for non-locating bearing arrangements. Its lightweight polyamide cage reduces friction, vibration, and noise during operation. Thanks to the separable design, you can mount, dismount, and service individual components quickly and efficiently.

Product information FAQ

€207.80

In stock - tax incl.

Key features according to our expert

Inner diameter: 80 mm
Width: 33 mm
Number of rows: 1
Radial clearance: CN (Normal)
Material (cage): Plastic
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Bore type: Cylindrical
Outer diameter: 140 mm

Product description

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

High radial load carrying capacity
Low friction
Long service life
Accommodate axial displacement in both directions
Separable design

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 80 mm
Width: 33 mm
Number of rows: 1
Radial clearance: CN (Normal)
Material (cage): Plastic
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Bore type: Cylindrical
Outer diameter: 140 mm
Basic static load rating: 245
Tolerance class: Normal
Radial internal clearance: CN
Loose flange: None
Cage: Non-metallic
Relubrication feature: Without
Reference speed: 5300
Skf performance class: SKF Explorer
Lubricant: None
Locating feature, bearing outer ring: None
Bearing part: Complete bearing
Sealing: Without
Number of flanges, outer ring: 2
Limiting speed: 5600
Bore diameter: 80
Basic dynamic load rating: 212
Coating: Without
Outer diameter: 140
Axial displacement capability: In both directions

Brand SKF
01070159
EAN 7316577065179
Supplier number SKF NU 2216 ECP

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF cylindrical roller bearing?: This bearing has a bore diameter of 80 mm, an outside diameter of 140 mm, and a width of 33 mm.
What does the NU design mean for this bearing?: The NU design features two flanges on the outer ring and no flanges on the inner ring, allowing axial displacement.
What material is the cage made from?: This bearing is equipped with a glass fibre reinforced polyamide (plastic) cage.
What internal radial clearance does this bearing have?: This model features standard normal radial internal clearance (CN).
Is this bearing sealed?: No, this is an open bearing without seals and requires lubrication before operation.
