skf_nu2216ecmlc3
SKF

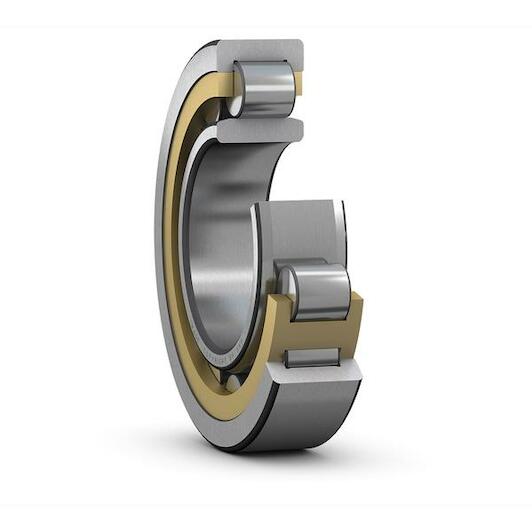

SKF NU 2216 ECML/C3 Single-row cylindrical roller bearing with NU design 80 mm

Recommended Retail Price €922.69
456.80 tax incl.
€377.52 excl. VAT (incl. all environmental contributions)
On order: delivered from 23/05/2026
each

  • Delivery by DHL

Product description

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

  • High radial load carrying capacity
  • Low friction
  • Long service life
  • Accommodate axial displacement in both directions
  • Separable design
Key features according to our expert
  • Inner diameter: 80 mm
  • Width: 33 mm
  • Number of rows: 1
  • Radial clearance: C3
  • Material (cage): Brass (solid)
  • Seal (bearing): Without seal
  • Bore type: Cylindrical
  • Outer diameter: 140 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316571092447
  • Supplier number: SKF NU 2216 ECML/C3
Inner diameter
80 mm
Width
33 mm
Number of rows
1
Radial clearance
C3
Material (cage)
Brass (solid)
Seal (bearing)
Without seal
Bore type
Cylindrical
Outer diameter
140 mm
Basic static load rating
245
Tolerance class
Normal
Radial internal clearance
C3
Loose flange
None
Lubricant
None
Relubrication feature
Without
Reference speed
5300
Skf performance class
SKF Explorer
Locating feature, bearing outer ring
None
Cage
Machined metal
Bearing part
Complete bearing
Sealing
Without
Number of flanges, outer ring
2
Limiting speed
8500
Bore diameter
80
Basic dynamic load rating
212
Coating
Without
Outside diameter
140
Axial displacement capability
In both directions
