skf_nu220ecmc3
SKF

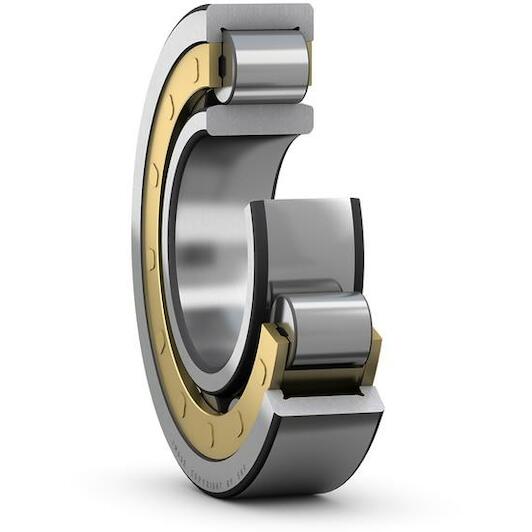

SKF NU 220 ECM/C3 Single-row cylindrical roller bearing with NU design 100 mm

Recommended Retail Price €1,556.42
770.40 tax incl.
€636.69 excl. VAT (incl. all environmental contributions)
On order: delivered from 23/05/2026
each

  • Delivery by DHL

Product description

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

  • High radial load carrying capacity
  • Low friction
  • Long service life
  • Accommodate axial displacement in both directions
  • Separable design
Key features according to our expert
  • Inner diameter: 100 mm
  • Width: 34 mm
  • Number of rows: 1
  • Radial clearance: C3
  • Material (cage): Brass (solid)
  • Seal (bearing): Without seal
  • Bore type: Cylindrical
  • Outer diameter: 180 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316572541906
  • Supplier number: SKF NU 220 ECM/C3
Inner diameter
100 mm
Width
34 mm
Number of rows
1
Radial clearance
C3
Material (cage)
Brass (solid)
Seal (bearing)
Without seal
Bore type
Cylindrical
Outer diameter
180 mm
Basic static load rating
305
Tolerance class
Normal
Radial internal clearance
C3
Loose flange
None
Lubricant
None
Relubrication feature
Without
Reference speed
4000
Skf performance class
SKF Explorer
Locating feature, bearing outer ring
None
Cage
Machined metal
Bearing part
Complete bearing
Sealing
Without
Number of flanges, outer ring
2
Limiting speed
4500
Bore diameter
100
Basic dynamic load rating
285
Coating
Without
Outside diameter
180
Axial displacement capability
In both directions
