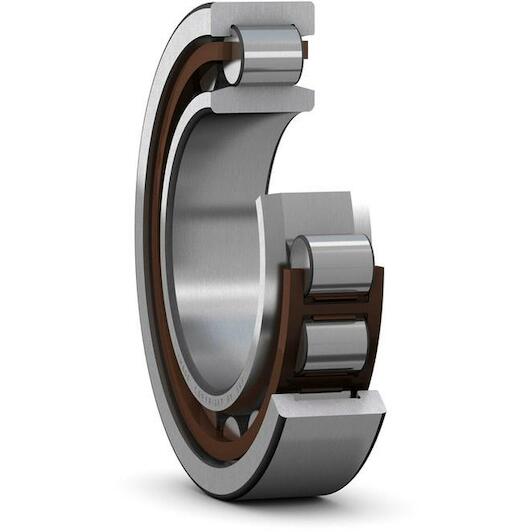

SKF NU 203 ECP single-row cylindrical roller bearing 17 x 40 x 12 mm

Supplier number: SKF NU 203 ECP | EAN 7316577061782
Recommended Retail Price €86.82
42.80 tax incl.
€35.37 excl. VAT (incl. all environmental contributions)
On order: delivered from 27/10/2026

  • Delivery by DHL


€42.80
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 17 mm
  • Width: 12 mm
  • Number of rows: 1
  • Radial clearance: CN (Normal)
  • Material (cage): Plastic
  • Sealing (bearing): Without seals
  • Material (bearing seal): Not applicable
  • Bore type: Cylindrical
  • Outer diameter: 40 mm

Product description

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

  • High radial load carrying capacity
  • Low friction
  • Long service life
  • Accommodate axial displacement in both directions
  • Separable design

Documents

All Features

Inner diameter
17 mm
Width
12 mm
Number of rows
1
Radial clearance
CN (Normal)
Material (cage)
Plastic
Sealing (bearing)
Without seals
Material (bearing seal)
Not applicable
Bore type
Cylindrical
Outer diameter
40 mm
Basic static load rating
14.3
Tolerance class
Normal
Radial internal clearance
CN
Loose flange
None
Cage
Non-metallic
Relubrication feature
Without
Reference speed
20000
Skf performance class
SKF Explorer
Lubricant
None
Locating feature, bearing outer ring
None
Bearing part
Complete bearing
Sealing
Without
Number of flanges, outer ring
2
Limiting speed
22000
Bore diameter
17
Basic dynamic load rating
20
Coating
Without
Outer diameter
40
Axial displacement capability
In both directions
  • Brand SKF
  • EAN 7316577061782
  • Supplier number SKF NU 203 ECP
