SKF

SKF NKI 6/16 TN needle roller bearing with inner ring 6x16x16 mm

Recommended Retail Price €46.20
22.80 tax incl.
€18.84 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Delivery by DHL

Product description

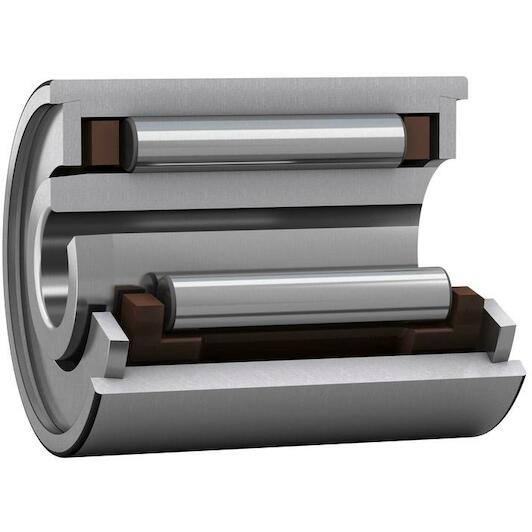

  • Single row needle roller bearings incorporate cylindrical rollers that are small in diameter relative to their length. Owing to their large number of rollers, the bearings have a high load carrying capacity. The outer ring includes two non-separable closure rings that act as flanges to guide the bearing axially.

Avantages

  • High radial load carrying capacity
  • High stiffness
  • Low cross-sectional height
  • Accommodate axial displacement in both directions
  • Separable design
Key features according to our expert
  • Inner diameter: 6 mm
  • Width: 16 mm
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Number of rows: 1
  • Material (cage): Plastic
  • Outer diameter: 16 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316571079738
  • Supplier number: SKF NKI 6/16 TN
Inner diameter
6 mm
Width
16 mm
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Number of rows
1
Material (cage)
Plastic
Outer diameter
16 mm
Aligning feature
Without
Bearing part
Complete bearing
Tolerance class
Normal
Radial internal clearance
CN
Lubricant
None
Basic static load rating
7.2 kN
Relubrication feature
Without
Reference speed
30,000 r/min
Number of flanges, outer ring
2
Seal type
Not applicable
Cage
Non-metallic
Sealing
Without
Outer ring type
Machined (solid)
Limiting speed
34,000 r/min
Bore diameter
6 mm
Basic dynamic load rating
5.72 kN
Coating
Without
Outside diameter
16 mm
Material, bearing
Bearing steel
