SKF

SKF NKI 12/16 needle roller bearing with inner ring 12x24x16 mm

Recommended Retail Price €54.53
26.80 tax incl.
€22.15 excl. VAT (incl. all environmental contributions)
On stock, immediately available. we have 3 products in stock.
each

  • Delivery by DHL

Product description

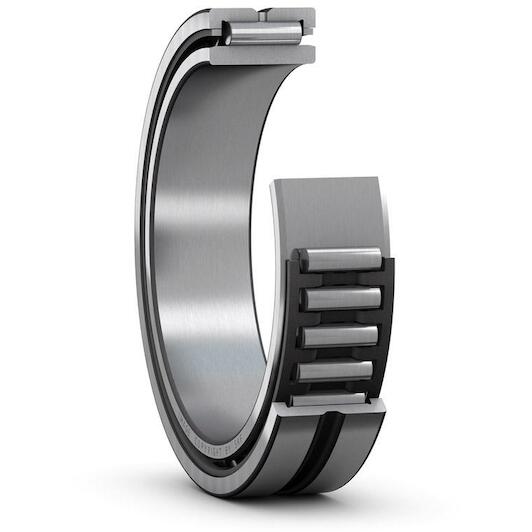

Single row needle roller bearings incorporate cylindrical rollers that are small in diameter relative to their length. Owing to their large number of rollers, the bearings have a high load carrying capacity. The outer ring includes two integral flanges to guide the bearing axially and an annular groove with one or more lubrication holes to facilitate relubrication.

  • High radial load carrying capacity
  • High stiffness
  • Low cross-sectional height
  • Accommodate axial displacement in both directions
  • Separable design
Key features according to our expert
  • Inner diameter: 12 mm
  • Width: 16 mm
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Number of rows: 1
  • Material (cage): Brass (sheet)
  • Outer diameter: 24 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577117809
  • Supplier number: SKF NKI 12/16
Inner diameter
12 mm
Width
16 mm
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Number of rows
1
Material (cage)
Brass (sheet)
Outer diameter
24 mm
Aligning feature
Without
Bearing part
Complete bearing
Tolerance class
Normal
Radial internal clearance
CN
Reference speed
22000
Basic static load rating
15.3
Relubrication feature
With
Number of flanges, outer ring
2
Lubricant
None
Cage
Sheet metal
Sealing
Without
Outer ring type
Machined (solid)
Limiting speed
26000
Bore diameter
12
Basic dynamic load rating
11.7
Coating
Without
Outside diameter
24
Material, bearing
Bearing steel
