What are the dimensions of this SKF needle roller bearing?

The bore diameter is 28 mm, the outside diameter is 37 mm, and the width is 20 mm.

Does the SKF NK 28/20 include an inner ring?

No, this model is designed without an inner ring and runs directly on a hardened and ground shaft raceway.

What type of load can this bearing handle?

It provides high radial load carrying capacity in compact spaces. It is not designed for axial loads.

Is this bearing sealed?

No, this bearing features an open design without seals.

Can this bearing be relubricated?

Yes, the outer ring contains an annular groove and a lubrication hole for relubrication.

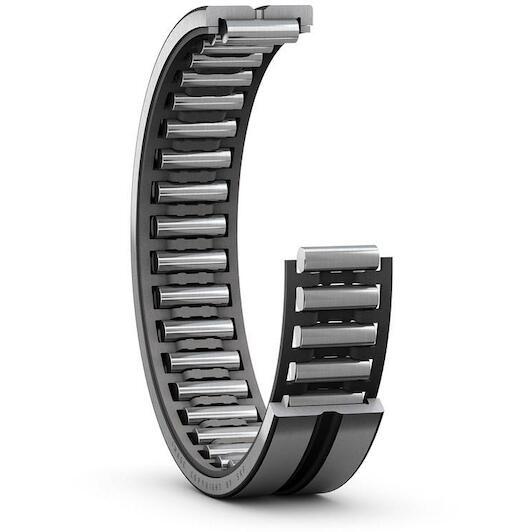

SKF NK 28/20 needle roller bearing without inner ring 28x37x20 mm

Supplier number: SKF NK 28/20 | EAN 7316577119995

Recommended Retail Price €60.39

29.80 tax incl.

€24.63 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 5 products in stock.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Compact radial support for tight spaces

Practical benefits

High radial load capacity: You accommodate heavy radial loads within extremely compact machine housings thanks to dense roller arrangements.
Space-saving ringless design: Mounting the NK 28/20 needle roller bearing directly onto a hardened shaft saves significant cross-sectional space.
Durable steel cage construction: You benefit from precise roller guidance and smooth continuous operation with the robust sheet steel cage.

In a nutshell

The right choise for

With the Skf nk 28/20 needle roller bearing, you achieve high radial load carrying capacity within minimal installation space. Designed without an inner ring, this single-row bearing mounts directly onto a 28 mm hardened and ground shaft raceway, saving valuable cross-sectional space and weight in compact gearboxes, hydraulic pumps, and industrial machinery. The durable sheet steel cage ensures precise roller guidance to reduce friction and shaft wear. In addition, the outer ring features an annular groove and lubrication hole to make routine relubrication quick and straightforward.

Product information FAQ

€29.80

In stock - tax incl.

Key features according to our expert

Inner diameter: 28 mm
Width: 20 mm
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Number of rows: 1
Material (cage): Sheet steel
Outer diameter: 37 mm

Product description

Single row needle roller bearings without an inner ring consist of an outer ring with a needle roller and cage assembly. They are an excellent choice for compact bearing arrangements in applications where hardened and ground raceways can be provided on the shaft. The outer ring includes two integral flanges to guide the bearing axially and an annular groove with one or more lubrication holes to facilitate relubrication.

High radial load carrying capacity
High stiffness
Low cross-sectional height
Accommodate axial displacement in both directions

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 28 mm
Width: 20 mm
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Number of rows: 1
Material (cage): Sheet steel
Outer diameter: 37 mm
Basic static load rating: 36.5
Bearing part: Bearing without inner ring
Tolerance class: Normal
Aligning feature: Without
Reference speed: 14000
Bore diameter of needle roller complement: 28
Relubrication feature: With
Number of flanges, outer ring: 2
Lubricant: None
Cage: Sheet steel
Sealing: Without
Basic dynamic load rating: 22
Outer ring type: Machined (solid)
Limiting speed: 16000
Coating: Without
Outer diameter: 37
Material, bearing: Bearing steel

Brand SKF
01290758
EAN 7316577119995
Supplier number SKF NK 28/20

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF needle roller bearing?: The bore diameter is 28 mm, the outside diameter is 37 mm, and the width is 20 mm.
Does the SKF NK 28/20 include an inner ring?: No, this model is designed without an inner ring and runs directly on a hardened and ground shaft raceway.
What type of load can this bearing handle?: It provides high radial load carrying capacity in compact spaces. It is not designed for axial loads.
Is this bearing sealed?: No, this bearing features an open design without seals.
Can this bearing be relubricated?: Yes, the outer ring contains an annular groove and a lubrication hole for relubrication.
