SKF NK 22/16 needle roller bearing without inner ring 22x30x16 mm

SKF
Supplier number: SKF NK 22/16 | EAN 7316577118059
Recommended Retail Price €51.26
25.20 tax incl.
€20.83 excl. VAT (incl. all environmental contributions)
On order: delivered from 21/10/2026

  • Delivery by DHL
↓ Documents (1) ✆ Talk to a specialist


Product information
€25.20
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 22 mm
  • Width: 16 mm
  • Sealing (bearing): Without seals
  • Material (bearing seal): Not applicable
  • Number of rows: 1
  • Material (cage): Sheet steel
  • Outer diameter: 30 mm

Product description

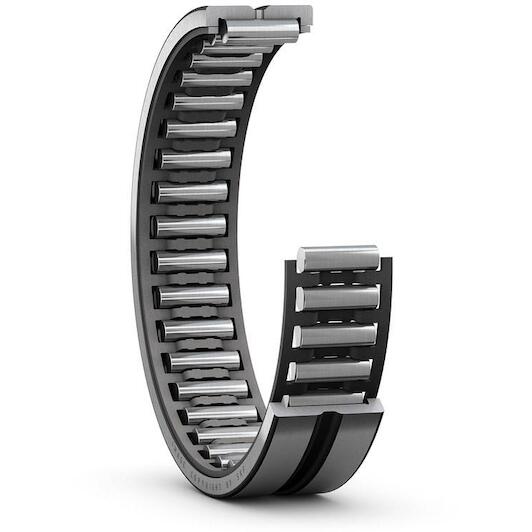

Single row needle roller bearings without an inner ring consist of an outer ring with a needle roller and cage assembly. They are an excellent choice for compact bearing arrangements in applications where hardened and ground raceways can be provided on the shaft. The outer ring includes two integral flanges to guide the bearing axially and an annular groove with one or more lubrication holes to facilitate relubrication.

  • High radial load carrying capacity
  • High stiffness
  • Low cross-sectional height
  • Accommodate axial displacement in both directions

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter
22 mm
Width
16 mm
Sealing (bearing)
Without seals
Material (bearing seal)
Not applicable
Number of rows
1
Material (cage)
Sheet steel
Outer diameter
30 mm
Basic static load rating
21.6
Bearing part
Bearing without inner ring
Tolerance class
Normal
Aligning feature
Without
Reference speed
18000
Bore diameter of needle roller complement
22
Relubrication feature
With
Number of flanges, outer ring
2
Lubricant
None
Cage
Sheet steel
Sealing
Without
Basic dynamic load rating
14.2
Outer ring type
Machined (solid)
Limiting speed
20000
Coating
Without
Outer diameter
30
Material, bearing
Bearing steel
  • Brand SKF
  • EAN 7316577118059
  • Supplier number SKF NK 22/16
