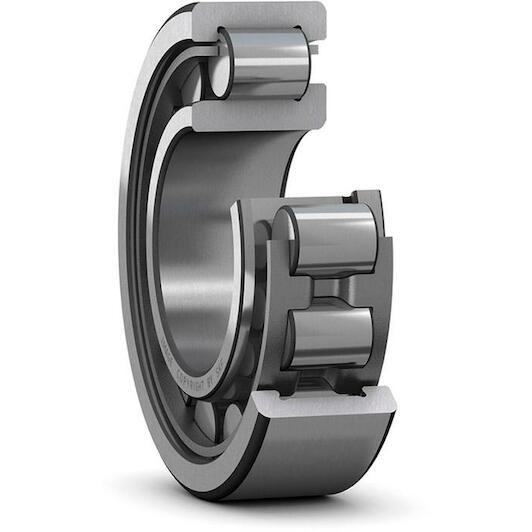

Product description:
- Cylindrical roller bearings have a high radial load carrying capacity and are capable of rotating at high speeds
- The rollers are guided by fixed track collars on one of the bearing rings
- The bearing ring with the track collars and roller set can be slid off from the other ring
- This makes mounting easier (especially if the bearing is to be mounted both on the shaft and on the bore with a fixed fit)
- A cylindrical roller bearing can withstand (limited) axial displacement
- Full complement cylindrical roller bearings: contain as many rollers as possible
- Double-row cylindrical roller bearing: consist of two rows of cylinders
Key features according to our expert
-
Inner diameter: 130 mm
-
Width: 58 mm
-
Number of rows: 1
-
Radial clearance: CN (Normal)
-
Material (cage): Brass (sheet)
-
Seal (bearing): Without seal
-
Material (bearing seal): Not applicable
-
Bore type: Cylindrical
-
Outer diameter: 280 mm
Specifications / All features
-
Brand:
SKF
-
01070048
-
EAN:
7316577042316
-
Supplier number:
SKF NJ 326 ECJ
- Inner diameter
- 130 mm
- Width
- 58 mm
- Number of rows
- 1
- Radial clearance
- CN (Normal)
- Material (cage)
- Brass (sheet)
- Seal (bearing)
- Without seal
- Material (bearing seal)
- Not applicable
- Bore type
- Cylindrical
- Outer diameter
- 280 mm
- Relubrication feature
- Without
- Tolerance class
- Normal
- Radial internal clearance
- CN
- Loose flange
- None
- Basic static load rating
- 750 kN
- Cage
- Sheet metal
- Reference speed
- 2,400 r/min
- Skf performance class
- SKF Explorer
- Lubricant
- None
- Locating feature, bearing outer ring
- None
- Number of flanges, inner ring
- 1
- Bearing part
- Complete bearing
- Sealing
- Without
- Number of flanges, outer ring
- 2
- Limiting speed
- 3,000 r/min
- Bore diameter
- 130 mm
- Basic dynamic load rating
- 720 kN
- Coating
- Without
- Outside diameter
- 280 mm
- Axial displacement capability
- In one direction
