What are the dimensions of this SKF bearing?

The bearing has a 70 mm bore diameter, 125 mm outside diameter, and 31 mm width.

What loads can the NJ design accommodate?

It is designed for high radial loads and can accommodate axial displacement in one direction.

What material is the cage made from?

The ECP designation indicates a glass fibre reinforced polyamide (polymer) cage.

Does this bearing come with built-in seals?

No, this is an open bearing without integrated seals, allowing custom lubrication for your setup.

What internal clearance does this bearing have?

This bearing has a standard normal radial internal clearance (CN class).

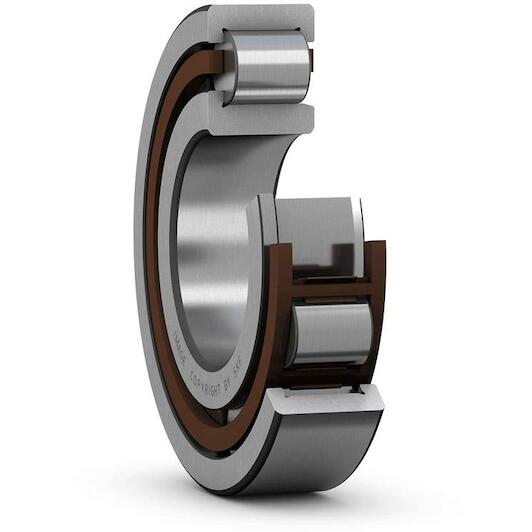

SKF NJ 2214 ECP single-row cylindrical roller bearing 70 x 125 x 31 mm

Supplier number: SKF NJ 2214 ECP | EAN 7316577022974

Recommended Retail Price €423.92

209.80 tax incl.

€173.39 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 3 products in stock.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable efficiency with the Skf bearing

Practical benefits

High radial load capacity: You accommodate heavy radial loads effortlessly thanks to the robust single row cylindrical roller configuration.
Smooth low-friction operation: The lightweight polyamide cage reduces internal friction, allowing you to run smoothly even at demanding rotational speeds.
Simple mounting and maintenance: With its separable ring design, you install the inner and outer rings independently with minimal effort.

In a nutshell

The right choise for

With the Skf nj 2214 ecp single row cylindrical roller bearing, you effortlessly accommodate heavy radial loads in industrial machinery and drive systems. Featuring a proven nj design with dimensions of 70 x 125 x 31 mm, this bearing delivers robust radial support while accommodating axial displacement in one direction. Its lightweight glass fibre reinforced polyamide cage significantly reduces internal friction and vibration, ensuring smooth and quiet operation at high rotational speeds. Thanks to the separable design and normal radial clearance (CN), you can install the inner and outer rings independently with ease. The unsealed, open configuration also lets you tailor lubrication precisely to your operational requirements.

Product information FAQ

€209.80

In stock - tax incl.

Key features according to our expert

Inner diameter: 70 mm
Width: 31 mm
Number of rows: 1
Radial clearance: CN (Normal)
Material (cage): Plastic
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Bore type: Cylindrical
Outer diameter: 125 mm

Product description

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and one on the inner ring, NJ design bearings can accommodate axial displacement in one direction. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

High radial load carrying capacity
Low friction
Long service life
Locate the shaft axially in one direction
Separable design

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 70 mm
Width: 31 mm
Number of rows: 1
Radial clearance: CN (Normal)
Material (cage): Plastic
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Bore type: Cylindrical
Outer diameter: 125 mm
Relubrication feature: Without
Tolerance class: Normal
Radial internal clearance: CN
Loose flange: None
Basic static load rating: 193
Cage: Non-metallic
Reference speed: 6000
Skf performance class: SKF Explorer
Lubricant: None
Locating feature, bearing outer ring: None
Number of flanges, inner ring: 1
Bearing part: Complete bearing
Sealing: Without
Number of flanges, outer ring: 2
Limiting speed: 6300
Bore diameter: 70
Basic dynamic load rating: 180
Coating: Without
Outer diameter: 125
Axial displacement capability: In one direction

Brand SKF
01070059
EAN 7316577022974
Supplier number SKF NJ 2214 ECP

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF bearing?: The bearing has a 70 mm bore diameter, 125 mm outside diameter, and 31 mm width.
What loads can the NJ design accommodate?: It is designed for high radial loads and can accommodate axial displacement in one direction.
What material is the cage made from?: The ECP designation indicates a glass fibre reinforced polyamide (polymer) cage.
Does this bearing come with built-in seals?: No, this is an open bearing without integrated seals, allowing custom lubrication for your setup.
What internal clearance does this bearing have?: This bearing has a standard normal radial internal clearance (CN class).
