What are the dimensions of this SKF bearing?

This bearing has an inside diameter of 90 mm, an outside diameter of 160 mm, and a width of 30 mm.

What does the NJ design indicate for this cylindrical roller bearing?

The NJ design features two integral flanges on the outer ring and one on the inner ring, locating the shaft axially in one direction.

What material is the cage made of?

The ECP suffix indicates a reinforced polymer (polyamide) cage.

What internal radial clearance does this bearing have?

This bearing has standard normal radial internal clearance (designated as CN).

Is this bearing equipped with seals?

No, this is an open bearing without integrated seals.

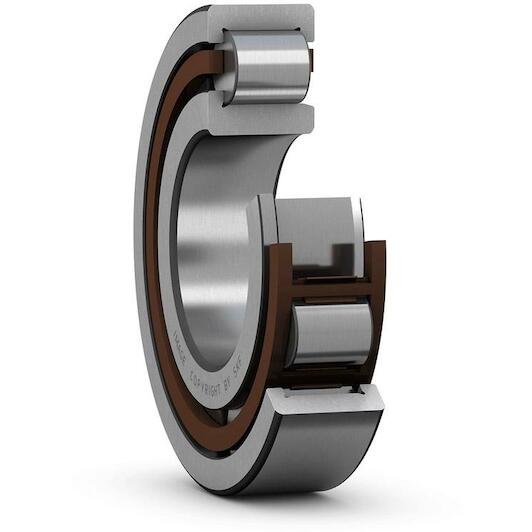

SKF NJ 218 ECP single-row cylindrical roller bearing 90 x 160 x 30 mm

Supplier number: SKF NJ 218 ECP | EAN 7316577291691

Recommended Retail Price €575.33

284.80 tax incl.

€235.37 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Reliable strength for heavy radial loads

Practical benefits

High radial load capacity: You effortlessly handle demanding radial forces and high operating speeds across a wide range of industrial machinery.
Smooth low-friction operation: The lightweight polymer cage of this Skf bearing minimizes running friction to ensure efficient and quiet performance.
Fast and easy mounting: With the separable NJ design, you install and maintain the inner and outer rings independently with complete ease.

In a nutshell

The right choise for

With the Skf nj 218 ecp single row cylindrical roller bearing, you gain a dependable solution for heavy radial loads and high operating speeds. Measuring 90 x 160 x 30 mm, this open bearing features a lightweight polymer cage that minimizes friction, ensuring smooth and quiet operation across industrial gearboxes, pumps, and electric machinery. The nj design incorporates two flanges on the outer ring and one on the inner ring, allowing you to locate the shaft axially in one direction. Its separable design makes mounting, dismounting, and regular maintenance straightforward and efficient.

Product information FAQ

€284.80

In stock - tax incl.

Key features according to our expert

Inner diameter: 90 mm
Width: 30 mm
Number of rows: 1
Radial clearance: CN (Normal)
Material (cage): Plastic
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Bore type: Cylindrical
Outer diameter: 160 mm

Product description

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and one on the inner ring, NJ design bearings can accommodate axial displacement in one direction. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

High radial load carrying capacity
Low friction
Long service life
Locate the shaft axially in one direction
Separable design

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 90 mm
Width: 30 mm
Number of rows: 1
Radial clearance: CN (Normal)
Material (cage): Plastic
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Bore type: Cylindrical
Outer diameter: 160 mm
Relubrication feature: Without
Tolerance class: Normal
Radial internal clearance: CN
Loose flange: None
Basic static load rating: 220
Cage: Non-metallic
Reference speed: 4500
Skf performance class: SKF Explorer
Lubricant: None
Locating feature, bearing outer ring: None
Number of flanges, inner ring: 1
Bearing part: Complete bearing
Sealing: Without
Number of flanges, outer ring: 2
Limiting speed: 5000
Bore diameter: 90
Basic dynamic load rating: 208
Coating: Without
Outer diameter: 160
Axial displacement capability: In one direction

Brand SKF
01070017
EAN 7316577291691
Supplier number SKF NJ 218 ECP

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF bearing?: This bearing has an inside diameter of 90 mm, an outside diameter of 160 mm, and a width of 30 mm.
What does the NJ design indicate for this cylindrical roller bearing?: The NJ design features two integral flanges on the outer ring and one on the inner ring, locating the shaft axially in one direction.
What material is the cage made of?: The ECP suffix indicates a reinforced polymer (polyamide) cage.
What internal radial clearance does this bearing have?: This bearing has standard normal radial internal clearance (designated as CN).
Is this bearing equipped with seals?: No, this is an open bearing without integrated seals.
