What are the exact dimensions of this cylindrical roller bearing?

The bearing has an inside diameter of 85 mm, an outside diameter of 150 mm, and a width of 28 mm.

What loads can the NJ design accommodate?

This single row bearing is designed for high radial loads and accommodates axial displacement in one direction.

What material is the cage made of?

The cage is made of glass fibre reinforced polyamide (plastic).

Does this bearing have integrated seals?

No, this bearing is an open design without integrated sealing.

What internal radial clearance does this bearing have?

This bearing has standard normal radial internal clearance (class CN).

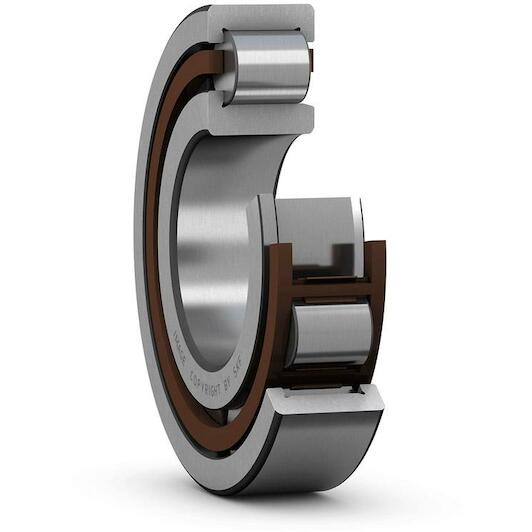

SKF NJ 217 ECP single-row cylindrical roller bearing 85 x 150 x 28 mm

Supplier number: SKF NJ 217 ECP | EAN 7316577108425

Recommended Retail Price €516.79

255.80 tax incl.

€211.40 excl. VAT (incl. all environmental contributions)

On order: delivered from 29/10/2026

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Efficient power transmission by Skf

Practical benefits

High radial load capacity: You effortlessly handle heavy radial loads at high operating speeds thanks to the single-row cylindrical roller design.
Quick and easy mounting: The separable components allow you to install inner and outer rings independently, simplifying maintenance and assembly routines.
Unidirectional axial guidance: Integrated flanges help you reliably locate the shaft and accommodate axial displacement in one direction during operation.

In a nutshell

The right choise for

With the Skf nj 217 ecp single-row cylindrical roller bearing, you achieve dependable power transmission in demanding industrial machinery. Engineered to handle heavy radial loads at high rotational speeds, it is an ideal choice for gearboxes, electric motors, and pumps. The nj design features integral flanges that accurately locate the shaft and accommodate axial displacement in one direction. Its glass fibre reinforced polyamide cage minimizes friction and heat buildup during operation. Thanks to the separable design, you can mount inner and outer rings independently, saving valuable time during assembly and maintenance. With dimensions of 85 x 150 x 28 mm, a cylindrical bore, and cn radial clearance, it ensures smooth and durable performance.

Product information FAQ

€255.80

tax incl.

Key features according to our expert

Inner diameter: 85 mm
Width: 28 mm
Number of rows: 1
Radial clearance: CN (Normal)
Material (cage): Plastic
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Bore type: Cylindrical
Outer diameter: 150 mm

Product description

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and one on the inner ring, NJ design bearings can accommodate axial displacement in one direction. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

High radial load carrying capacity
Low friction
Long service life
Locate the shaft axially in one direction
Separable design

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 85 mm
Width: 28 mm
Number of rows: 1
Radial clearance: CN (Normal)
Material (cage): Plastic
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Bore type: Cylindrical
Outer diameter: 150 mm
Relubrication feature: Without
Tolerance class: Normal
Radial internal clearance: CN
Loose flange: None
Basic static load rating: 200
Cage: Non-metallic
Reference speed: 4800
Skf performance class: SKF Explorer
Lubricant: None
Locating feature, bearing outer ring: None
Number of flanges, inner ring: 1
Bearing part: Complete bearing
Sealing: Without
Number of flanges, outer ring: 2
Limiting speed: 5300
Bore diameter: 85
Basic dynamic load rating: 190
Coating: Without
Outer diameter: 150
Axial displacement capability: In one direction

Brand SKF
01070016
EAN 7316577108425
Supplier number SKF NJ 217 ECP

Frequently asked questions about this product

Answered by specialists

What are the exact dimensions of this cylindrical roller bearing?: The bearing has an inside diameter of 85 mm, an outside diameter of 150 mm, and a width of 28 mm.
What loads can the NJ design accommodate?: This single row bearing is designed for high radial loads and accommodates axial displacement in one direction.
What material is the cage made of?: The cage is made of glass fibre reinforced polyamide (plastic).
Does this bearing have integrated seals?: No, this bearing is an open design without integrated sealing.
What internal radial clearance does this bearing have?: This bearing has standard normal radial internal clearance (class CN).
