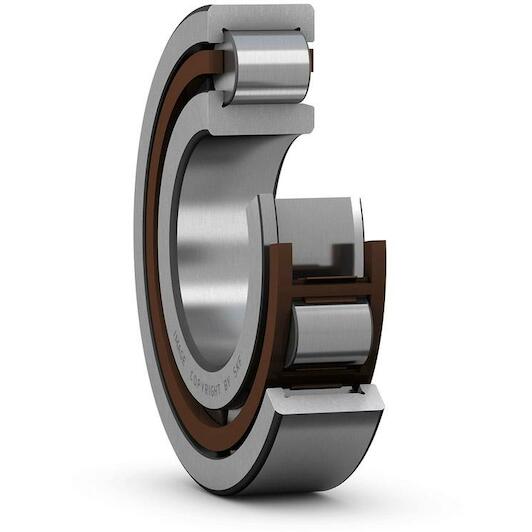

SKF NJ 206 ECP/C3 Single-row cylindrical roller bearing 30 x 62 x 16 mm

Supplier number: SKF NJ 206 ECP/C3 | EAN 7316577030832

Recommended Retail Price €129.20

63.80 tax incl.

€52.73 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Smooth high-speed rotation with Skf

Practical benefits

High radial load capacity: You handle heavy radial forces effortlessly thanks to the optimized cylindrical roller design.
Reliable high-speed performance: With C3 internal clearance and a low-friction polymer cage, you maintain efficient rotation at elevated temperatures.
Easy and separable mounting: The separable NJ configuration lets you mount and align inner and outer rings independently with ease.

In a nutshell

The right choise for

Keep your electric motors, gearboxes, and industrial machinery running smoothly with the Skf nj 206 ECP/C3 single row cylindrical roller bearing. Engineered to handle high radial loads, this bearing also provides dependable axial shaft guidance in one direction thanks to its nj design. The C3 radial internal clearance accommodates thermal expansion during high-speed operation and elevated temperatures, while the lightweight polymer cage minimizes friction and operating noise. Its separable construction allows you to mount and service the inner and outer rings independently with ease, ensuring optimal machine uptime and reliable performance on every demanding job.

Product information FAQ

€63.80

In stock - tax incl.

Key features according to our expert

Inner diameter: 30 mm
Width: 16 mm
Number of rows: 1
Radial clearance: C3
Material (cage): Plastic
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Bore type: Cylindrical
Outer diameter: 62 mm

Product description

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and one on the inner ring, NJ design bearings can accommodate axial displacement in one direction. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

High radial load carrying capacity
Low friction
Long service life
Locate the shaft axially in one direction
Separable design

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 30 mm
Width: 16 mm
Number of rows: 1
Radial clearance: C3
Material (cage): Plastic
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Bore type: Cylindrical
Outer diameter: 62 mm
Relubrication feature: Without
Tolerance class: Normal
Radial internal clearance: C3
Loose flange: None
Basic static load rating: 36.5
Cage: Non-metallic
Reference speed: 13000
Skf performance class: SKF Explorer
Lubricant: None
Locating feature, bearing outer ring: None
Number of flanges, inner ring: 1
Bearing part: Complete bearing
Sealing: Without
Number of flanges, outer ring: 2
Limiting speed: 14000
Bore diameter: 30
Basic dynamic load rating: 44
Coating: Without
Outside diameter: 62
Axial displacement capability: In one direction

Brand SKF
01070557
EAN 7316577030832
Supplier number SKF NJ 206 ECP/C3

Frequently asked questions about this product

Answered by specialists

What are the exact dimensions of this SKF cylindrical roller bearing?: The bearing has an inside diameter of 30 mm, an outside diameter of 62 mm, and a width of 16 mm.
What does the C3 designation mean for this bearing?: C3 indicates a larger radial internal clearance than standard, suitable for higher temperatures or high rotational speeds.
Can this bearing accommodate axial loads?: Yes, with two integral flanges on the outer ring and one on the inner ring, the NJ design supports axial loads in one direction.
What material is the cage made of?: The cage of this bearing is made from reinforced plastic (polyamide).
Is this SKF bearing sealed?: No, this is an open bearing without seals and requires external lubrication.
