skf_natv35pp
SKF

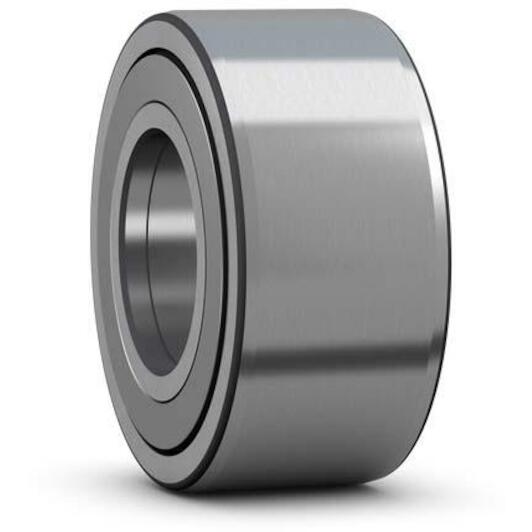

SKF NATV 35 PPA support roller with inner ring and flange seal (Yoke type track roller) 72 x 35 x 29 mm - NATV 35 PP

Recommended Retail Price €351.81
173.95 tax incl.
€143.76 excl. VAT (incl. all environmental contributions)
On order: delivered from 22/05/2026
each

  • Delivery by DHL

Product description

Support rollers (yoke-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a needle roller bearing with an inner ring. They have a thick-walled outer ring with a crowned running surface and are supplied sealed and ready-to-mount. A lubrication hole in the inner ring facilitates relubrication.

  • High radial load carrying capacity
  • Accommodate axial loads due to skew or tilting
  • Long service life
  • Ready to mount
  • Sealed for increased reliability, with relubrication feature
Key features according to our expert
  • Inner diameter: 35 mm
  • Outer diameter: 72 mm
  • Width: 29 mm
Specifications / All features
  • Brand: SKF
  • EAN: 07316577723420
  • Supplier number: SKF NATV 35 PP
Inner diameter
35 mm
Outer diameter
72 mm
Width
29 mm
Rolling elements
Needle rollers
Functional outside diameter
72
Material, bearing
Bearing steel
Cage
Without
Sealing type
Contact
Width, outer ring
28
Lubricant
Grease
Relubrication feature
With
Basic static load rating
76.5
Tolerance class
Other
Bearing part
Complete track roller
Axial guidance of outer ring
Yes
Number of flanges, outer ring
2
Sealing
Seal on both sides
Width, total
29
Outer ring profile
Crowned
Limiting speed
1200
Bore diameter
35
Number of rows
1
Basic dynamic load rating
35.8
Coating
Without
Application
Support roller
