What are the dimensions of this SKF support roller?

This support roller has an outer diameter of 32 mm, an inner diameter of 12 mm, and a total width of 15 mm.

Can this support roller be relubricated?

Yes, the inner ring features a lubrication hole to allow easy relubrication.

What applications is this track roller suitable for?

It is designed for cam drives, guide tracks, and conveyor systems handling high radial loads.

What internal bearing design is used?

The roller is built with a needle roller and cage assembly along with an inner ring.

Does this roller feature integrated seals?

Yes, it includes contact seals on both sides to retain grease and keep out contaminants.

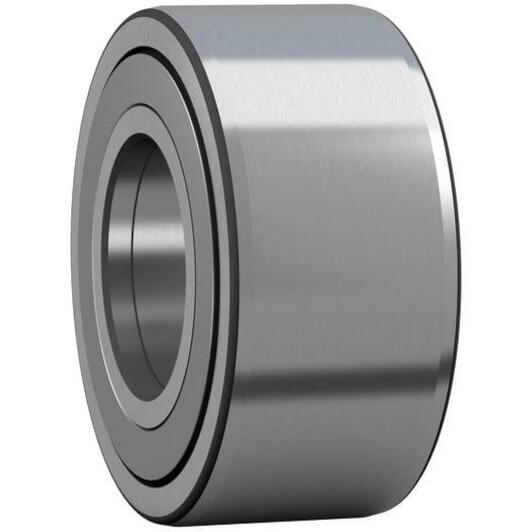

SKF NATR 12 PPA support roller with inner ring and flange seal (Yoke-type idler) 32 x 12 x 15 mm - NATR 12 PP

Supplier number: SKF NATR 12 PP | EAN 7316570104325

Recommended Retail Price €123.86

60.95 tax incl.

€50.37 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Smooth tracking with Skf

Practical benefits

Effective seal against contamination: The integrated seals protect the internal needle rollers from dirt and debris to maximize service life.
Convenient relubrication feature: You can easily add grease through the relubrication duct to keep the roller running smoothly.
High radial load capacity: Designed with solid flange rings, it effortlessly handles heavy radial forces in demanding mechanical systems.

In a nutshell

The right choise for

With the Skf natr 12 ppa track roller, you ensure dependable, smooth tracking across cam drives, conveyor systems, and linear guide tracks. Sized at 32 x 12 x 15 mm, this yoke-type roller easily handles heavy radial loads thanks to its needle roller and cage assembly, inner ring, and solid flange rings. Built-in contact seals protect the bearing from dirt and moisture while retaining grease for maximum service life. When maintenance is required, the lubrication hole in the inner ring allows fast and easy relubrication. This helps minimize downtime and surface wear, keeping your industrial machinery operating smoothly.

Product information FAQ

€60.95

In stock - tax incl.

Key features according to our expert

Inner diameter: 12 mm
Width: 15 mm
Outer diameter: 32 mm

Product description

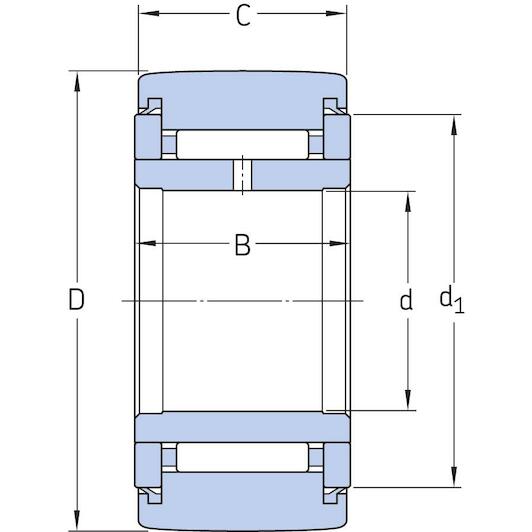

Support rollers (yoke-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a needle roller bearing with an inner ring. They have a thick-walled outer ring with a crowned running surface and are supplied sealed and ready-to-mount. A lubrication hole in the inner ring facilitates relubrication.

High radial load carrying capacity
Accommodate axial loads due to skew or tilting
Long service life
Ready to mount
Sealed for increased reliability, with relubrication feature

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 12 mm
Width: 15 mm
Outer diameter: 32 mm
Axial guidance of outer ring: Yes
Rolling elements: Needle rollers
Functional outside diameter: 32
Material, bearing: Bearing steel
Cage: With
Sealing type: Contact
Width, outer ring: 14
Lubricant: Grease
Relubrication feature: With
Basic static load rating: 6.8
Radial internal clearance: Between C2 and CN
Tolerance class: Other
Bearing part: Complete track roller
Number of flanges, outer ring: 2
Sealing: Seal on both sides
Width, total: 15
Outer ring profile: Crowned
Limiting speed: 4300
Bore diameter: 12
Number of rows: 1
Basic dynamic load rating: 7.04
Coating: Without
Application: Support roller

Brand SKF
01210063
EAN 7316570104325
Supplier number SKF NATR 12 PP

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF support roller?: This support roller has an outer diameter of 32 mm, an inner diameter of 12 mm, and a total width of 15 mm.
Can this support roller be relubricated?: Yes, the inner ring features a lubrication hole to allow easy relubrication.
What applications is this track roller suitable for?: It is designed for cam drives, guide tracks, and conveyor systems handling high radial loads.
What internal bearing design is used?: The roller is built with a needle roller and cage assembly along with an inner ring.
Does this roller feature integrated seals?: Yes, it includes contact seals on both sides to retain grease and keep out contaminants.
