SKF

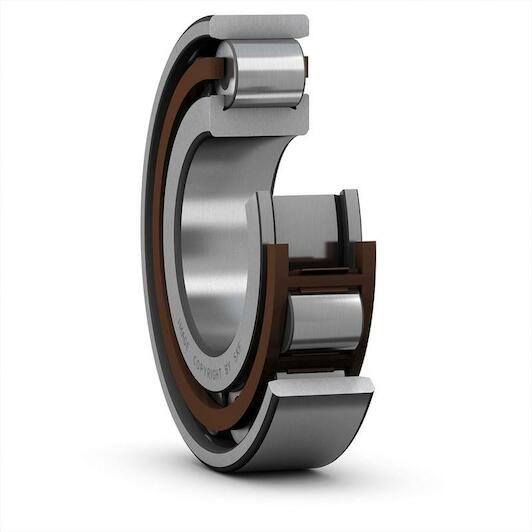

SKF N 222 ECP single-row cylindrical roller bearing 110 x 200 x 38 mm

Recommended Retail Price €1,644.18
813.95 tax incl.
€672.69 excl. VAT (incl. all environmental contributions)
On order: delivered from 27/05/2026
each

  • Delivery by DHL

Product description

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the inner ring and no flanges on the outer ring, N design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

  • High radial load carrying capacity
  • Low friction
  • Long service life
  • Accommodate axial displacement in both directions
  • Separable design
Key features according to our expert
  • Inner diameter: 110 mm
  • Width: 38 mm
  • Number of rows: 1
  • Radial clearance: CN (Normal)
  • Material (cage): Plastic
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Bore type: Cylindrical
  • Outer diameter: 200 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577108593
  • Supplier number: SKF N 222 ECP
Inner diameter
110 mm
Width
38 mm
Number of rows
1
Radial clearance
CN (Normal)
Material (cage)
Plastic
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Bore type
Cylindrical
Outer diameter
200 mm
Relubrication feature
Without
Radial internal clearance
CN
Loose flange
None
Basic static load rating
365
Number of flanges, inner ring
2
Reference speed
3600
Skf performance class
SKF Explorer
Lubricant
None
Cage
Non-metallic
Bearing part
Complete bearing
Tolerance class
Normal
Locating feature, bearing outer ring
None
Sealing
Without
Limiting speed
4000
Bore diameter
110
Basic dynamic load rating
335
Coating
Without
Outside diameter
200
Axial displacement capability
In both directions
